Mikroe Hall Current 8 Click

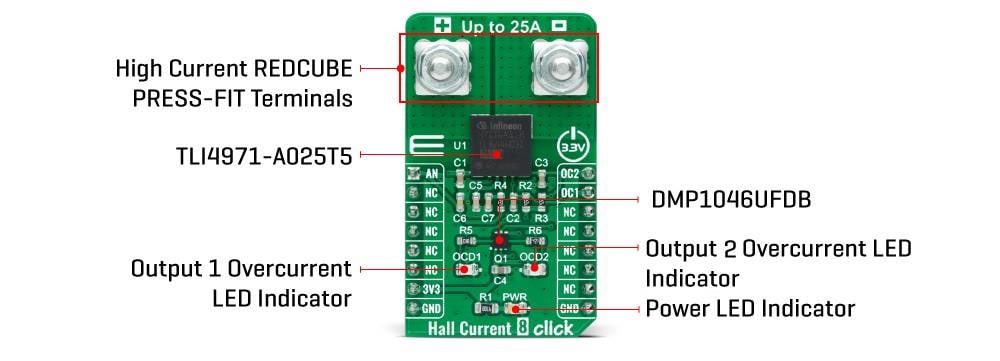

Mikroe Hall Current 8 Click contains a precise solution for AC/DC current sensing. The board features the Infineon Technologies TLI4971-A025T5 high-precision coreless current sensor for industrial/consumer applications. The TLI4971-A025T5 has an analog interface and two fast overcurrent detection outputs, which support the protection of the power circuitry. Galvanic isolation is also provided according to the magnetic sensing principle. Infineon’s monolithic Hall technology enables accurate and highly linear measurement of currents with a full scale up to 25A.

Features

On-board modules T
- Infineon Technologies TLI4971-A025T5 high-precision miniature coreless magnetic current sensor for AC and DC measurements up to 120A with an analog interface and two fast overcurrent detection outputs
Highly accurate
Scalable
DC & AC current sensing

Analog interface and two independent fast Over-Current Detection (OCD) outputs
Very low sensitivity error over temperature
Analog interface
mikroBUS compatibility
M (42.9mm x 25.4mm) click board size
3.3V input voltage

Applications

AC/DC current measurement
Electrical drives
General-purpose inverters
Chargers

Current monitoring
Overload
Over-current detection
