Mikroe Hall Current 7 Click

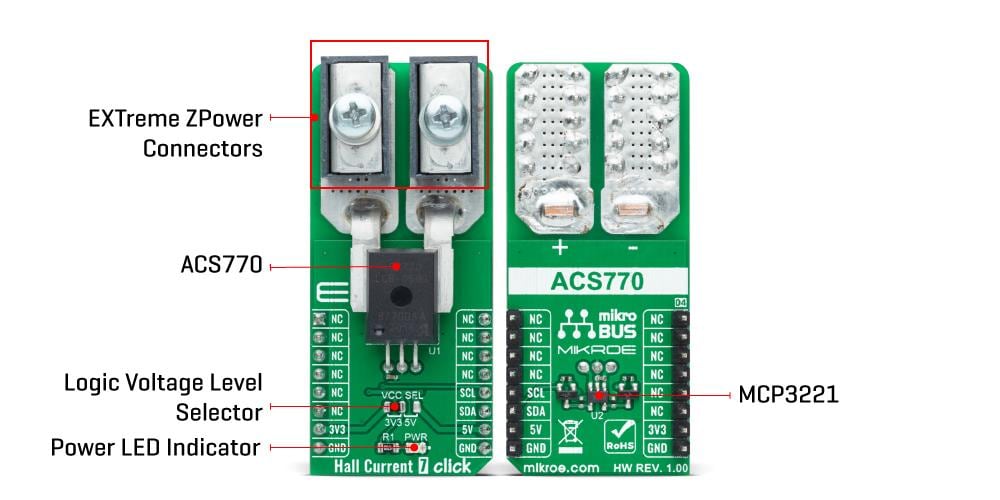

Mikroe Hall Current 7 Click provides economical and precise solutions for AC or DC current sensing. The board features the Allegro MicroSystems ACS770 thermally enhanced, fully integrated, hall effect-based high precision linear current sensor. It has a 100µΩ current conductor. Applied current flows directly into the integrated conductor generating a magnetic field. An integrated low-hysteresis core concentrates the magnetic field sensed by the Hall element with a typical accuracy of ±1% and 120kHz bandwidth.

Features

On-board modules
- Allegro MicroSystems ACS770 thermally enhanced, fully integrated, hall effect-based high precision linear current sensor with 100µΩ current conductor
Ultralow-power loss
High precision
Improved total output error

High reliability
High accuracy
Extremely stable output offset voltage
Interface
- I²C
Compatibility
- mikroBUS
Click board size
- L (57.15mm x 25.4mm)
Input Voltage
- 3.3V or 5V

Applications

Motor control
Load detection and management

DC-to-DC converter control
Similar applications that require accurate and reliable current sensing
