Mikroe GNSS RTK Click

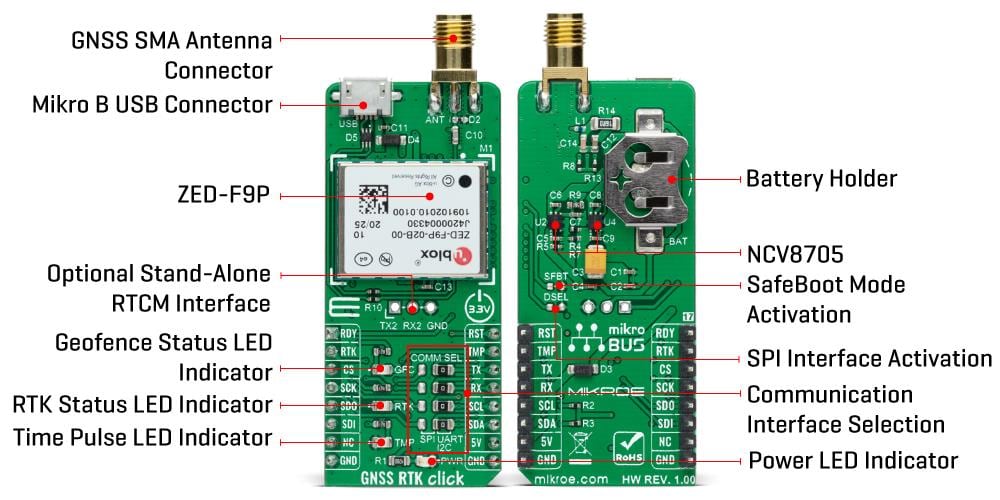

Mikroe GNSS RTK Click enhances the precision of position data derived from satellite-based positioning systems. The board features the U-blox ZED-F9P multi-band GNSS module with integrated multi-band Real Time Kinematics (RTK) technology offering centimeter-level accuracy. The module concurrently uses GNSS signals from all four GNSS constellations (GPS, GLONASS, Galileo, and BeiDou). It provides multi-band RTK with fast convergence times, reliable performance, and easy integration. It also includes moving base support, allowing base and rover to move while computing a centimeter-level accurate position between them.

Features

On-board modules
- U-blox ZED-F9P multi-band GNSS module with integrated multi-band RTK technology offering centimeter-level accuracy
High precision
Centimeter-level accuracy
High update rate for highly dynamic applications

Multi-band RTK with fast convergence times and reliable performance
I²C, UART, SPI, GPIO interface
mikroBUS compatibility
L (57.15mm x 25.4mm) click board size
5V input voltage

Applications

Machine control
Ground robotic vehicles
High precision unmanned aerial vehicles (UAV)
