Mikroe Expand 9 Click

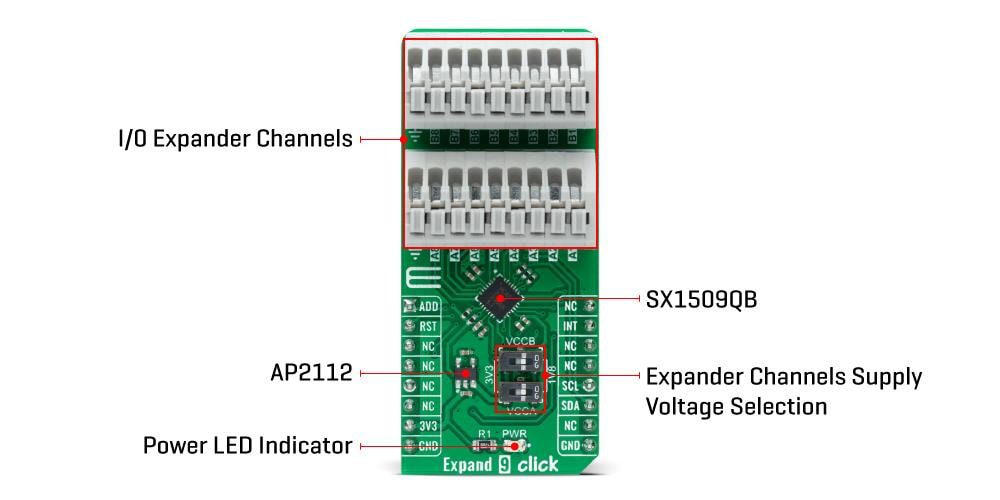

Mikroe Expand 9 Click features the Semtech Corporation SX1509QB voltage level shifting GPIO expander. The SX1509QB comes in a 16-channel configuration and allows easy serial expansion of I/O through a standard I²C serial interface. It also has a built-in level shifting feature making it highly flexible in power supply systems where communication between incompatible I/O voltages is required. The device also has an integrated LED driver for enhanced lighting, and a keypad scanning engine to implement keypad applications up to 8×8 matrix.

Features

On-board modules
- Semtech Corporation SX1509QB 16-channel lowest voltage level shifting GPIO expander
Low power consumption
Integrated LED driver for enhanced lighting
On-chip keypad scanning engine
Interrupt and reset feature

Selectable I²C slave address
I²C interface
mikroBUS compatibility
L (57.15mm x 25.4mm) click board size
3.3V input voltage

Applications

Low-power portable equipment
Keypad scanning
Driving LEDs
