Mikroe EEPROM 7 Click

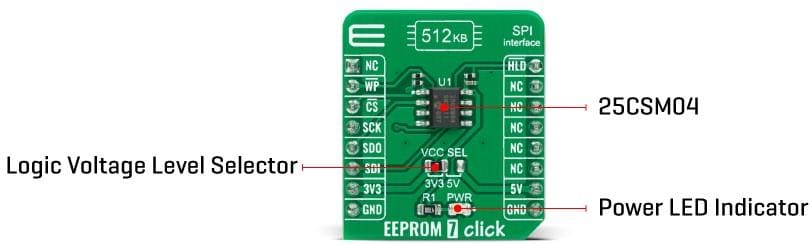

Mikroe EEPROM 7 Click is a high-density memory solution that features the Microchip 25CSM04 4-Mbit SPI Serial EEPROM with a 128-bit serial number and enhanced write protection mode. The 25CSM04 comes up with the compatible SPI serial interface and is internally organized as 2,048 pages of 256 bytes each. It includes a security register with a 128-bit unique serial number and a 256-byte (2048-bit) user-programmable lockable ID page, built-in ECC, and a configurable write protection scheme for all bytes.

Features

On-board modules
Microchip 25CSM04 4Mb Serial EEPROM with a Serial Peripheral Interface (SPI), a 128-bit serial number, and enhanced Write Protection Mode
4-Mbit serial EEPROM
Security register
High-speed clock frequency
Enhanced write protection mode

High reliability
Interface
- SPI
Compatibility
- mikroBUS
Click board size
- S (28.6mm x 25.4mm)
Input Voltage
- 3.3V or 5V

Applications

Consumer and industrial applications where reliable and dependable nonvolatile memory storage is essential
