Mikroe DSP Click

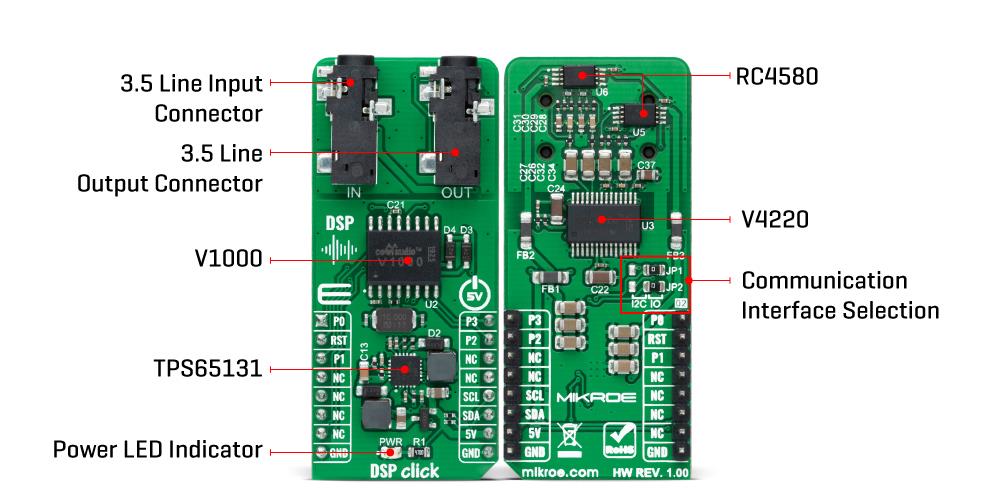

Mikroe DSP Click features the Coolaudio V1000 complete multi-effects audio DSP with ultra-high quality audio performance. The V1000 includes its integrated RAM with 16 built-in multi-effects and reverb controlled via I/O pins or I²C interface. The board is combined with a low-cost V4220 A/D-D/A codec that provides an ultra-low-cost FX solution.

Features

On-board modules
- Coolaudio V1000 complete multi-effects audio DSP with ultra-high quality audio performance in a rapid time-to-market solution
- Coolaudio V4220 4-bit stereo codes
Low power consumption
Built-in reverb and multi-effects
Ultra-high quality audio performance

Optimized for digital signal processing, in combination with V4220 provides an ultra-low-cost FX solution
GPIO, I²C interface
mikroBUS compatibility
L (57.15mm x 25.4mm) click board size
5V input voltage

Applications

Standalone audio player
PC accessories

Hi-Tech toys
Conventional consumer electronic devices
