Mikroe DC Motor 6 Click

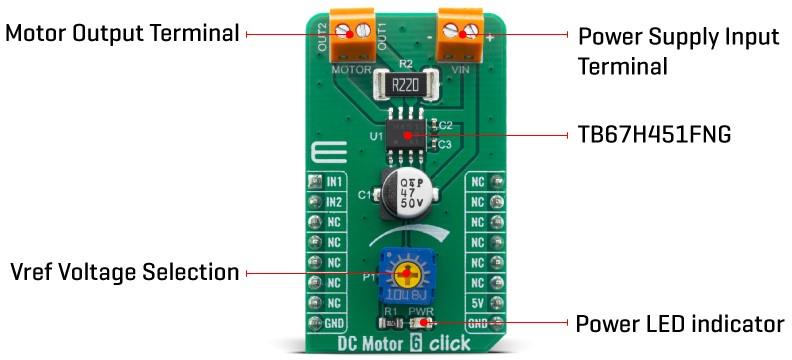

Mikroe DC Motor 6 Click is a PWM chopper-type brushed DC motor driver, labeled as TB67H451FNG. The IC has one motor output block channel, that uses a wide range of supply voltages. It delivers reasonably high current to the connected DC motors. Low ON-resistance MOSFETs, and PWM control help the TB67H451FNG exhibit lower heat generation. The TB67H451FNG has two inputs, IN1 and IN2. This allows for the selection of the four operation modes: forward (clockwise), reverse (counter-clockwise), short brake, and stop modes.

Features

  • On-board modules: TB67H451FNG
  • DC Motor 6 click is a PWM chopper-type brushed DC motor driver
  • IC includes one channel of motor output block
  • Uses a wide range of supply voltages while delivering reasonably high current to the connected DC motors
  • Interface: GPIO
  • Compatibility: mikroBUS
  • Click board size: M (42.9mm x 25.4mm)
  • Input voltage: 5V

Applications

  • Various RC cars and boats
  • Small to medium-sized robots, drones and similar applications
  • Driving motors in air or water pumps, air conditioners, ventilation systems, handheld tools, etc.

Overview

Mikroe DC Motor 6 Click
