Mikroe DC Motor 21 Click

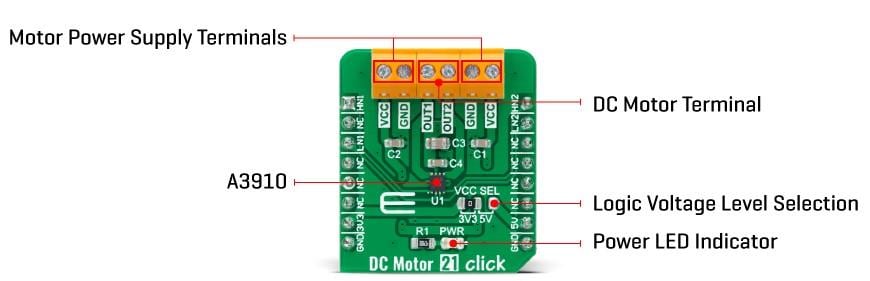

Mikroe DC Motor 21 Click features the Allegro Microsystems A3910 DC motor driver designed for low voltage power applications. The board is controlled with several GPIO pins and has a wide operating voltage range with an output current capacity of 500mA. In addition to the possibility to be used in the full-bridge configuration to drive a single bidirectional DC motor. The Motor 21 Click can also be used as a dual half-bridge to drive dual DC motors.

Features

On-board modules
- Allegro Microsystems A3910 dual half-bridge motor driver designed for low voltage power applications
Low power consumption
Full- and half-bridge configuration
Low rds
Standby mode with zero drain-current

Crossover and thermal shutdown protection
GPIO interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

Driving DC brushed motors and targeted at the consumer and industrial market with end applications to low voltage equipment
