Mikroe DC Motor 19 Click

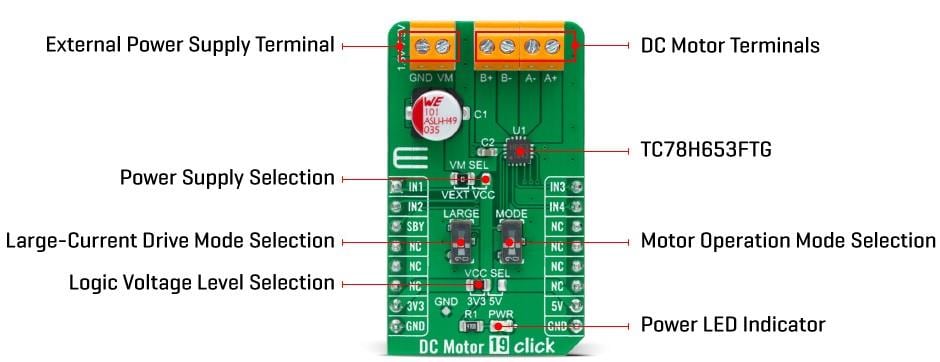

Mikroe DC Motor 19 Click features the Toshiba Semiconductor TC78H653FTG dual H-bridge driver for one or two DC brushed motors or one stepping motor. The TC78H653FTG incorporates DMOS with low ON resistance in output transistors. The Forward/Reverse/Brake/Stop mode can be selected according to the state of its input control signals, while the motor operation and current mode can be chosen through onboard switches alongside control signals. It has a wide operating voltage range of 1.8V to 7.5V with an output current capacity of 4A (DC). It also features built-in protection against under-voltage, overcurrent, and overtemperature conditions.

Features

On-board modules
- Toshiba Semiconductor TC78H653FTG dual H-bridge driver for one or two DC brushed motors or one stepping motor
Low power consumption
Dual bridge driver
High drive capability
Low voltage drive
Low-on resistance

Selectable motor operation
Built-in Standby and protection features
GPIO interface
mikroBUS compatibility
M (42.9mm x 25.4mm) click board size
3.3V or 5V, external input voltage

Applications

Driving DC brushed motors and stepping motors for low voltage equipment like home electronic products and devices using a 5V USB power supply
