Mikroe DC Motor 17 Click

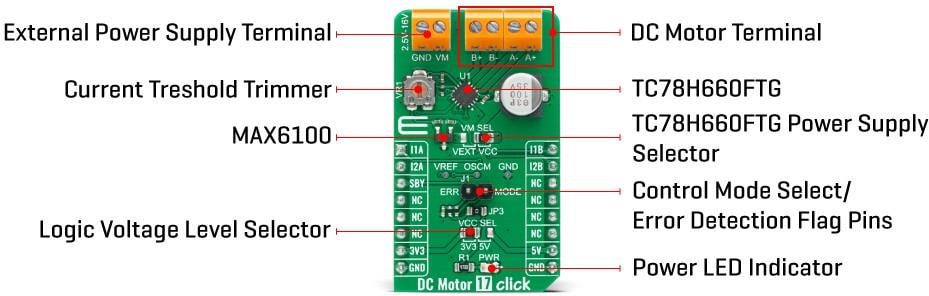

Mikroe DC Motor 17 Click contains a brushed DC motor driver and features the Toshiba Semiconductor TC78H660FTG dual H Bridge driver. The driver is for one or two brushed motors with a DMOS output transistor with low on-resistance. This IC is a PWM controlled constant-current drive with supply voltages from 2.5V to 16V and 2A of output current. It features a sense-resistor less current control architecture and VCC regulator for the internal circuit. Also offered are multi-error detect functions with error detection flag output function.

Features

  • On-board modules
    • Toshiba Semiconductor TC78H660FTG dual H Bridge driver for one or two DC brushed motors that incorporates a DMOS with low on-resistance in output transistors
  • Built-in dual H Bridge
  • Built-in sense resistor
  • Multi error detect functions
  • Error detection flag
  • Selectable operating modes
  • Interface
    • PWM, GPIO
  • Compatibility
    • mikroBUS
  • Click board size
    • M (42.9mm x 25.4mm)
  • Input Voltage
    • 5V, 3.3V, External

Applications

  • Driving DC motors
  • Controlling the direction of the rotation
  • Brake and regulate the motor current

Overview

Mikroe DC Motor 17 Click
