Mikroe Current Limit 5 Click

Mikroe Current Limit 5 Click board features the Microchip Technology MIC2099 current-limit power distribution switch. The board represents a programmable current limit solution with various protection features and fault indication. It operates from a 2.5V to 5.5V input voltage range. Also, the current limit is adjustable from 100mA up to 1.05A programmed through the MCP4561 digital potentiometer.

Features

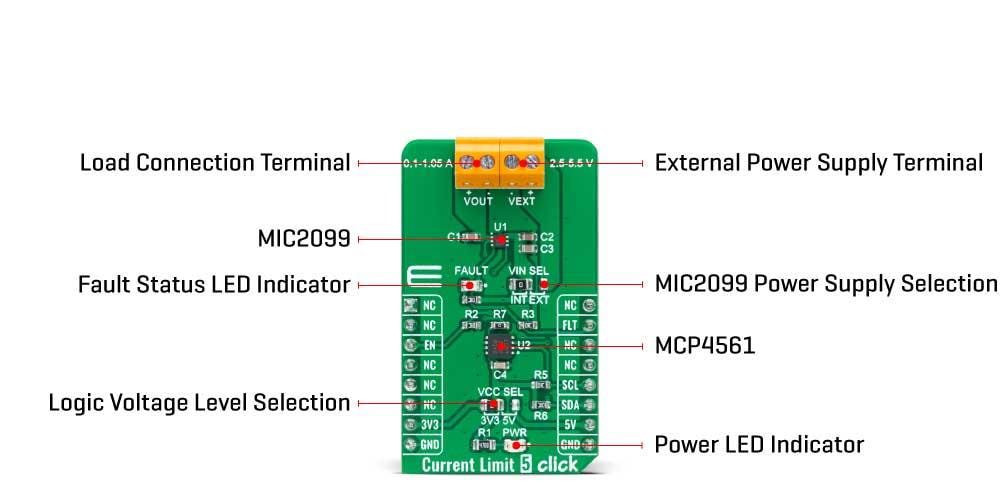

On-board modules
- Microchip Technology MIC2099 current-limiting device with an adjustable overcurrent protection feature
Integrated protection features
Programmable current limiting up to 1.05A
Soft start that prevents large current inrush
Enable feature

The automatic-on output after fault
I²C interface
mikroBUS compatibility
M (42.9mm x 25.4mm) Click board size
3.3V or 5V, external input voltage

Applications

Portable equipment and condition monitoring or power supplies
Protection from short circuits or other overload conditions

Overview

Mikroe Current Limit 5 Click
