Mikroe Current 4 Click

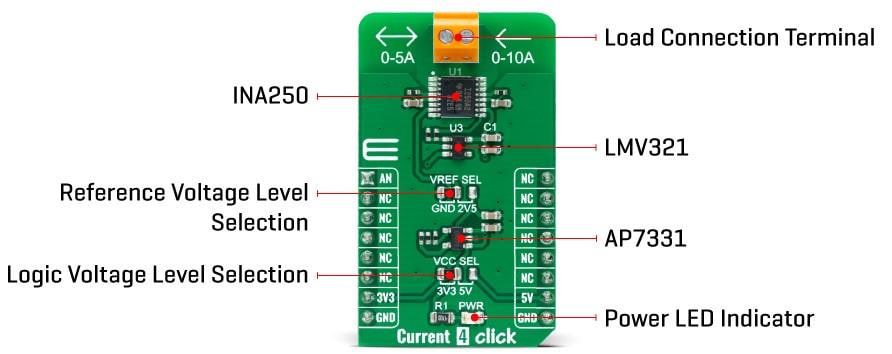

Mikroe Current 4 Click features the Texas Instruments INA250 bidirectional, zero-drift current-shunt monitor. This voltage-output, current-sensing amplifier measures the voltage developed across the internal current-sensing resistor when current passes through it. Also, by selecting the reference voltage, the INA250 allows users to measure both unidirectional and bidirectional currents through the current-sensing resistor.

Features

On-board modules
- Texas Instruments INA250 current-sense amplifier with a high-precision, low-drift shunt resistor which can deliver highly accurate measurements over a wide temperature range
Low power consumption
Precise integrated shunt resistor
High accuracy
500mV/A gain

Zero-drift
Uni/bidirectional current measurements
Analog interface
mikroBUS compatibility
M (42.9mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

Test and measurement
Load monitoring and power supplies, automotive
