Mikroe Clicker 4 for TMPM4K

Mikroe Clicker 4 for TMPM4K is designed as a complete solution to quickly build gadgets with unique functionalities. The Clicker 4 is equipped with five different power supply inputs, and a reliable and safe battery charging circuit. A single-cell Li-Po/Li-Ion battery can be charged. Clicker 4 is equipped with an onboard Debug Unit, based on Toshiba’s TMPM067FWQG MCU, and compliant with an on-board emulator standard called CMSIS-DAP.

Features

32-bit Arm® Cortex®-M4 TMPM4KNFYAFG MCU operating at up to 160MHz, 256KB Code Flash, 32KB Data Flash, 24KB of SRAM, and Vector Engine, Encoder, and Programmable Motor Driver (PMD) for Brushless DC Motors
USB Type-C™ connectors. Six LEDs, six push buttons, and a reset button
On-board debugger and JTAG/SWD header for interfacing with external electronics

Four mikroBUS™ sockets for adding Click board™
Small, affordable, yet powerful starter development kit
Mounting holes simplify integration.
Compact design with clear and descriptive silkscreen markings
Side headers for interfacing with external electronics

Mikroe Clicker 4 for TMPM4K

Features

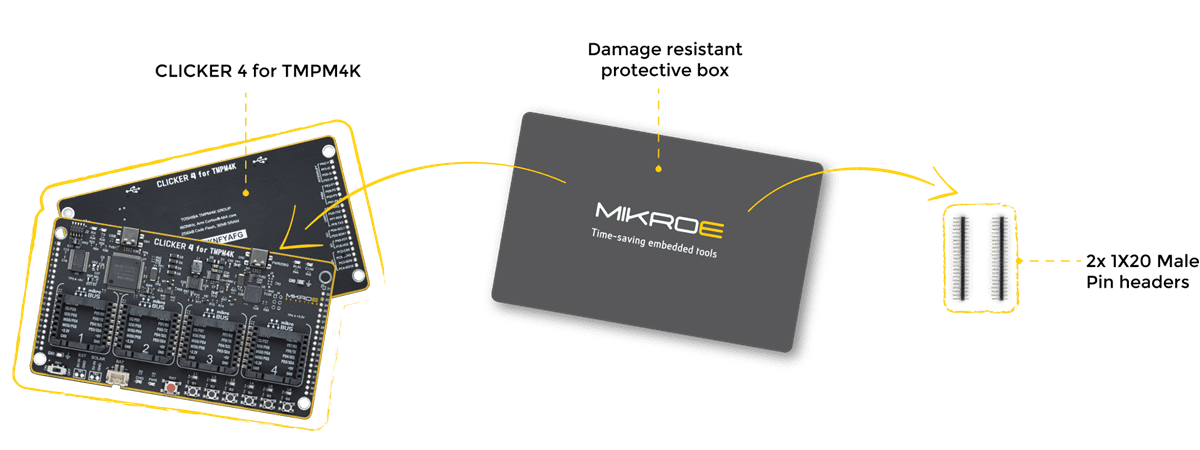

IN THE PACKAGE
