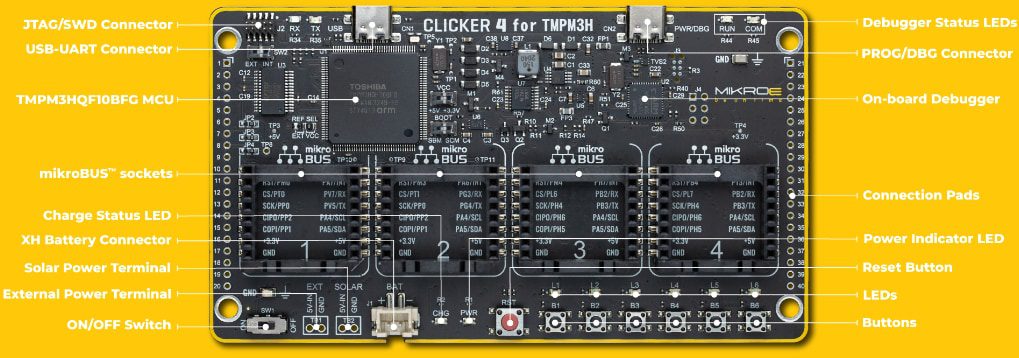

Mikroe Clicker 4 for TMPM3H

Mikroe Clicker 4 for TMPM3H has an advanced onboard Debug Unit powered by Toshiba’s cutting-edge TMPM067FWQG MCU. The Mikroe Clicker 4 is compliant with the onboard emulator standard CMSIS-DAP. This device allows testing and debugging of the target device right out of the box.

Features

32-bit Arm® Cortex®-M3 TMPM3H MCU operating at up to 120MHz, 1024KB Code Flash, 32KB Data Flash, 128KB of SRAM, with advanced Encoder and Programmable Motor Driver (PMD) for Brushless DC Motors
USB Type-C™ connectors. Six LEDs, six push buttons, and a reset button
Onboard debugger and JTAG/SWD header for interfacing with external electronics

Four mikroBUS™ sockets for adding Click board™
Small, affordable, yet powerful starter development kit
Mounting holes simplify integration
Compact design with clear and descriptive silkscreen markings
Side headers for interfacing with external electronics

Applications

Rapid prototyping of electronic gadgets
IoT device development
Sensor integration and testing

Home automation projects
Wearable technology design
Smart home device development

Mikroe Clicker 4 for TMPM3H

Features

Applications

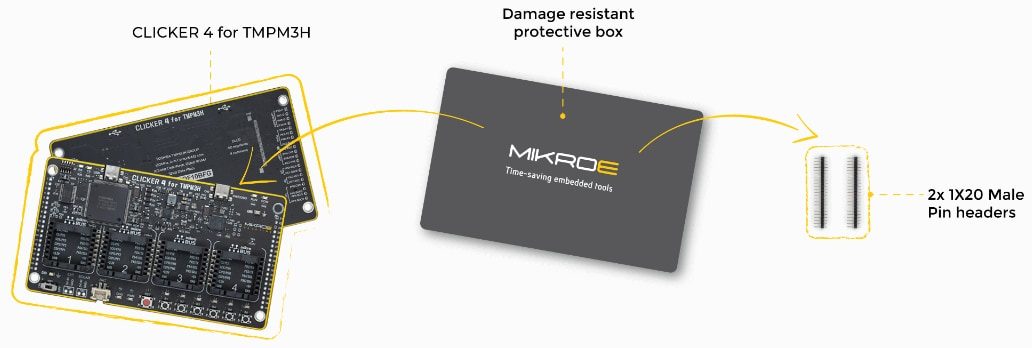

Kit Contents
