Mikroe Buck & Boost Click

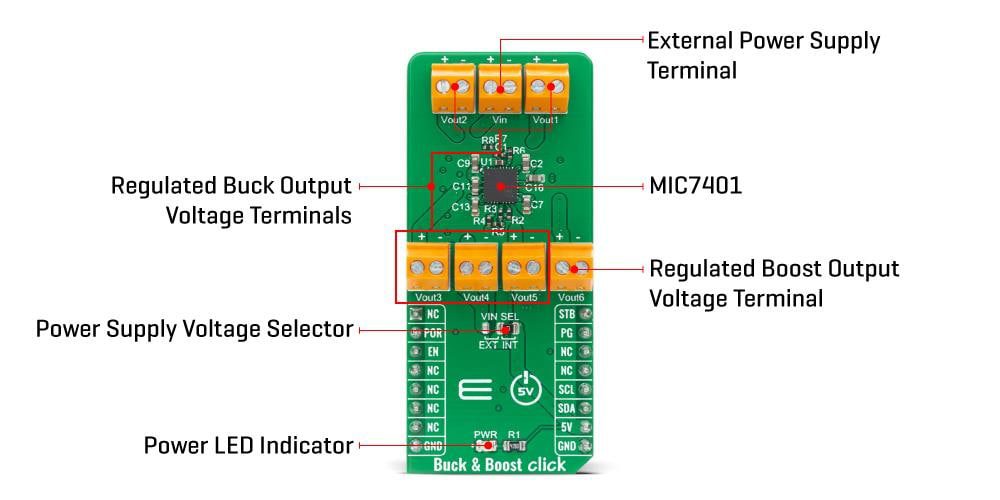

Mikroe Buck & Boost Click features the Microchip MIC7401 configurable power management device. The MIC7401 is a highly-integrated power-management IC featuring five synchronous buck regulators, one boost regulator, and a high-speed I2C interface with an internal EEPROM memory. The MIC7401 offers two distinct modes of operation (Standby and Normal) and includes a global enable pin to shut down the device for additional power savings. The board is an energy-optimized solution with flexibility and high-performance ideal for portable handheld and infotainment applications.

Features

  • On-board modules
    • Microchip MIC7401 power management (PMIC) featuring buck and boost regulators and a high-speed I2C interface with an internal EEPROM memory and micro-power shutdown function
  • High-density five buck channels
  • One independent boost channel
  • 93% peak efficiency
  • Fast transient response
  • Short-to-ground fault detection
  • I2C interface
  • mikroBUS compatibility
  • L (57.15×25.4mm) click board size
  • 5V, External Input Voltage

Applications

  • Portable handheld and infotainment applications

Overview

Mikroe Buck & Boost Click
