Mikroe Buck 16 Click

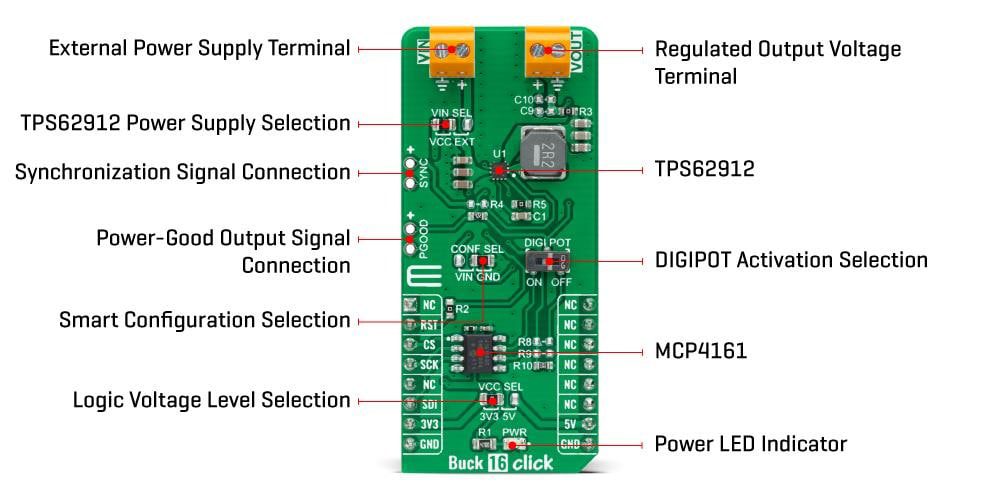

Mikroe Buck 16 Click features a DC-DC power converter that steps down the voltage from its input to its output. The board contains the Texas Instruments TPS62912 high-efficiency, low noise, and low ripple current-mode synchronous buck converter. The TPS62912 has an output-voltage error of less than 1%. This helps ensure tight output-voltage accuracy, operates at a fixed switching frequency of 2.2MHz or 1MHz, and allows synchronization to an external clock.

Features

On-board modules
- Texas Instrument TPS62912 – low-noise, low-ripple synchronous buck converter with a fixed-frequency current-mode key Features
Low output noise and voltage ripple
2.2MHz or 1MHz fixed frequency peak current mode control
Synchronizable with an external clock

Output voltage accuracy of ±1%
Power-good output
GPIO, SPI interface
mikroBUS compatibility
L (57.15mm x 25.4mm) click board size
3.3V or 5V, external input voltage

Applications

Noise-sensitive applications that generally use an LDO for post-regulation
High-speed ADCs
Clock and jitter cleaner

Serializer
De-serializer
Radar applications
