Mikroe Brushless 14 Click

Mikroe Brushless 14 Click features the Toshiba Semiconductor TB67B001FTG three-phase, brushless, hall sensorless driver IC. It comes with a 150-degree wide-angle commutation drive, contributing to lower vibration and motor noise. It has a rotation speed of up to 30,000rpm. This can be achieved through a high-speed PWM and improved cooling.

Features

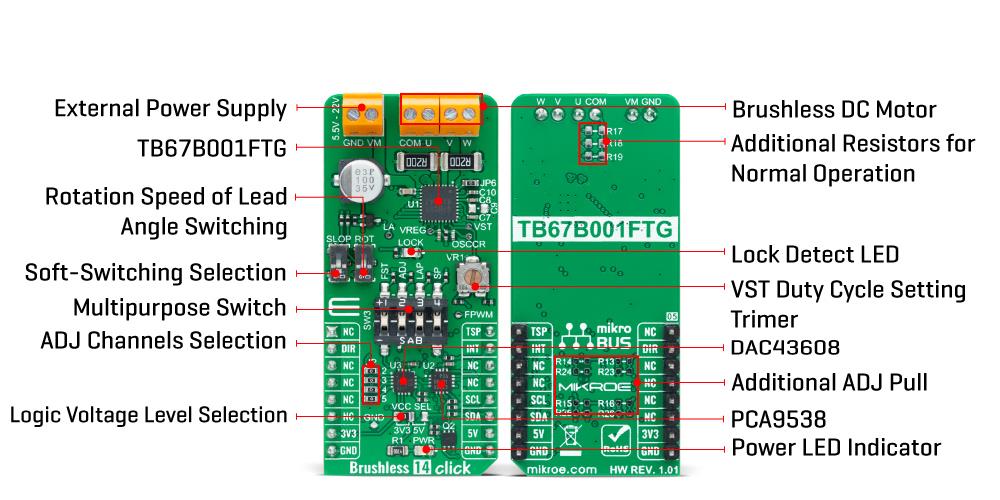

On-board modules
- Toshiba SemiconductorTB67B001FTG three-phase PWM chopper driver for sensorless brushless motors
Sensorless drive in three-phase full-wave mode
PWM chopper control
Adjustable output PWM
Lead angle control

Overlapping commutation
Rotation-speed and lock detection
GPIO, I²C interface
mikroBUS compatibility
L (57.15mm x 25.4mm) click board size
3.3V or 5V, external input voltage

Applications

Energy-saving solution and quiet motor operation in brushless DC (BLDC) motors
