Mikroe Boost 3 Click

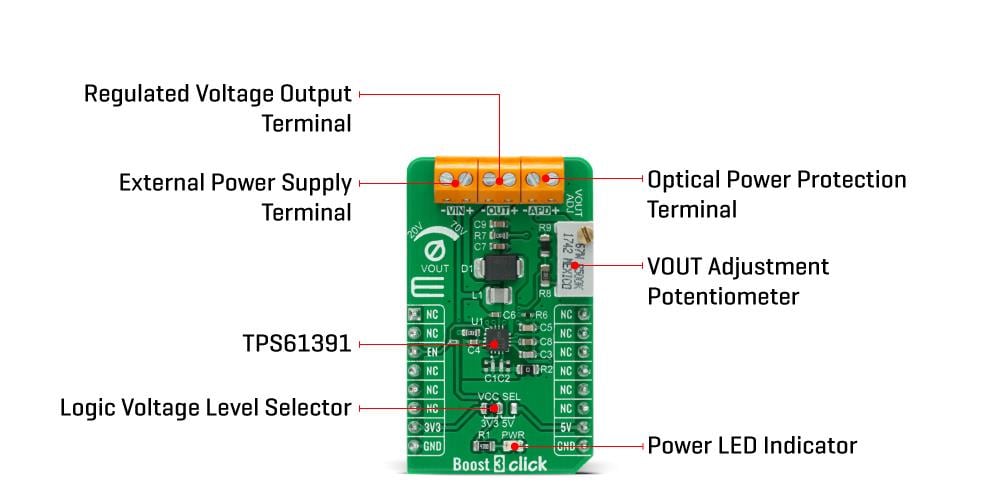

Mikroe Boost 3 Click has a boost converter with an integrated current mirror function. The board features the Texas Instruments TPS61391 700kHz pulse-width modulating (PWM) Step-Up converter with a 70V switch FET with an input voltage up to 5.5V. The TPS61391 includes an accurate current mirror, with two selectable gain options (1:5 or 4:5). It provides high optical-power protection with an additional FET in series with the APD power path, with the typical response time of 0.5µs.

Features

On-board modules
- Texas Instruments TPS61391 700kHz pulse-width modulating (PWM) Step-Up converter with a 70V switch FET with an input voltage up to 5.5V
An under-voltage lockout
High optical power protection
Wide output voltage range from 20V to 70V

Current mirror function
GPIO interface
mikroBUS compatibility
M (42.9mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

Biasing and monitoring the avalanche photodiodes (APD) in the optical receivers
High voltage sensor supply or in battery-powered and automotive applications
