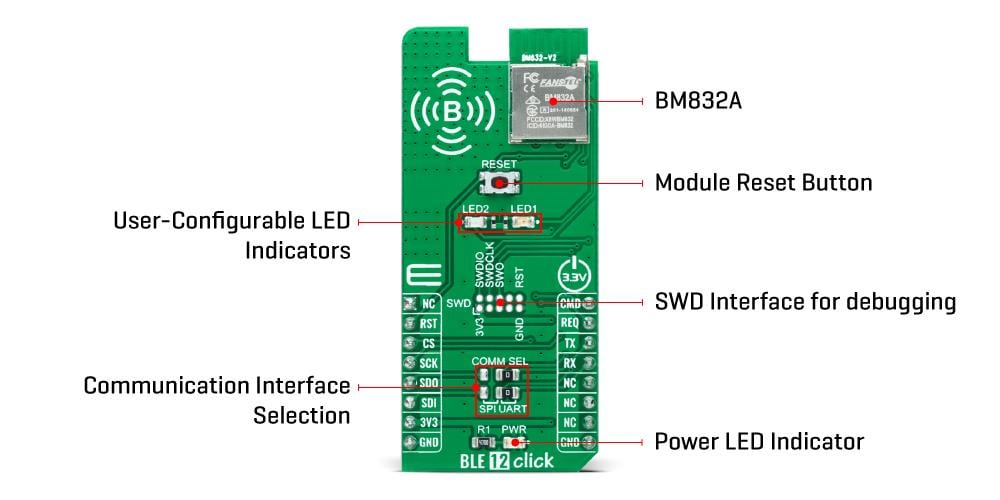

Mikroe BLE 12 Click

Mikroe BLE 12 Click provides BT/BLE connectivity for embedded applications and features the Fanstel BM832A. The BM832A is a powerful and highly flexible, ultra low power BLUETOOTH® Low Energy (BLE) module. The module is based on the Nordic nRF52 SoC and supports BLUETOOTH® 5.0 Low-Energy (BLE) connectivity. The device delivers RF range and performance, debugging, enhanced security features, and low power consumption. It also comes with an ARM Cortex™ M4(F) MCU up to 192kB flash and 24kB RAM, embedded 2.4GHz multi-protocol transceiver, and an integrated PCB trace antenna.

Features

On-board modules
- Fanstel BM832A – highly flexible, ultra low power BLUETOOTH® module that provides BLE connectivity for any embedded application
BLUETOOTH® 5.0 Low-Energy (BLE) solution
Complete RF solution with integrated antenna
SWD debug interface
Enhanced security features

Low power consumption
Selectable interface
SPI, UART interface
mikroBUS compatibility
L (57.15mm x 25.4mm) click board size
3.3V input voltage

Applications

Low-cost BLUETOOTH® low energy applications
Building automation and sensor networks

Portable medical
Connected home
