Mikroe Analog MUX Click

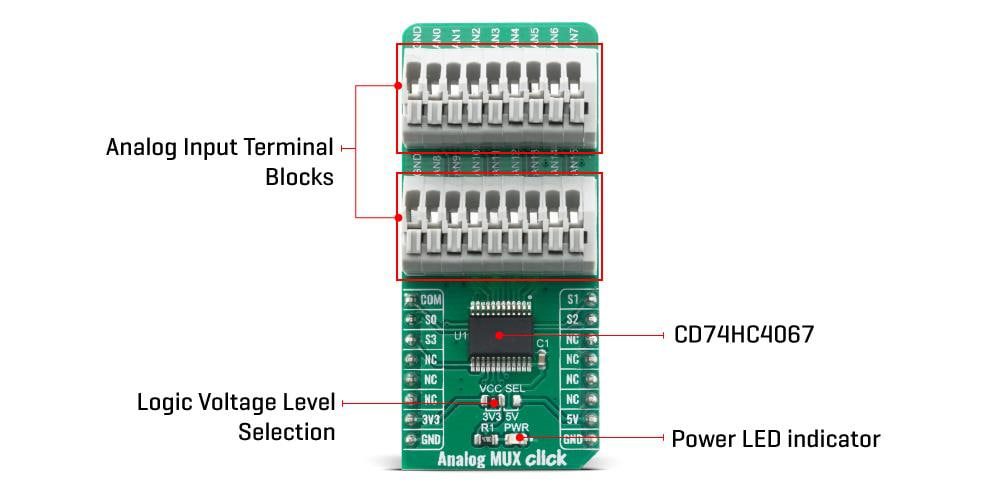

Mikroe Analog MUX Click is used to switch one of sixteen inputs to one output. The click features the Texas Instruments CD74HC4067 High-Speed CMOS Logic 16-Channel Analog Multiplexer/Demultiplexer. It offers rail-to-rail operation, allowing the input signal to swing up (and down) to the voltage of the power supply, with no distortion.

Features

On-board modules: Texas Instruments CD74HC4067 high-speed CMOS logic 16-channel analog multiplexer/demultiplexer
Low on-resistance, and low input current leakage
Fast and balanced propagation delay, and transition times
Break-before-make switching action
Interface: GPIO
Compatibility: mikroBUS
Click board size: L (57.15mm x 25.4mm)
Input voltage: 3.3V or 5V

Applications

Automatization and process control
Programmable logic controllers
Digital multimeter
Battery monitoring
Other applications that require analog signal switching
