Mikroe Ambient 18 Click

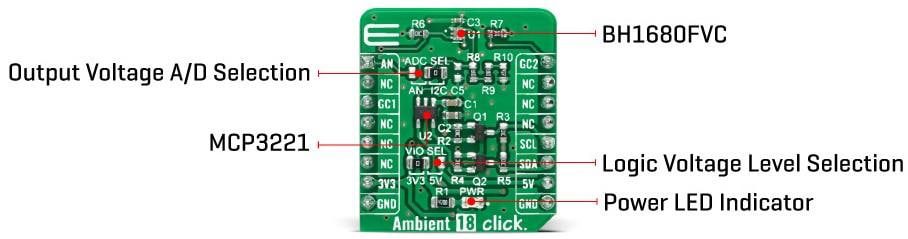

Mikroe Ambient 18 Click features the ROHM Semiconductor. BH1680FVC analog current-output ambient light sensor. The BH1680FVC detects a wide range of illuminance up to 10klx and provides excellent responsivity close to the human eye. It’s also characterized by low sensitivity variation across various light sources, a built-in shutdown function, and the ability to process the output signal in analog or digital form.

Features

On-board modules
- ROHM Semiconductor BH1680FVC analog current-output ambient light sensor
Low power consumption
Close responsivity to the human eye
Good output linearity across a wide illumination range
Low sensitivity variation across various light sources

Stable performance over temperature and voltage
Possibility of signal processing in analog and digital form
Analog, GPIO, I²C interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

Can be used for obtaining ambient light data for adjusting brightness in applications that require power saving and better visibility
