Mikroe ADC 17 Click

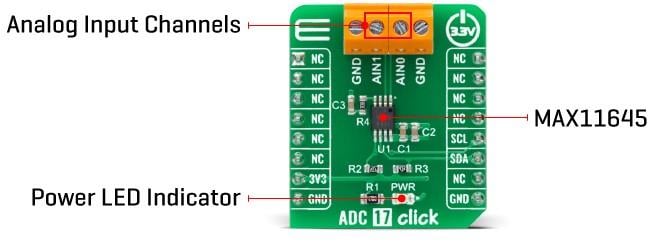

Mikroe ADC 17 Click features the Analog Devices MAX11645 low-power two-channel 12-bit analog-to-digital converter. The MAX11645 measures two single-ended or one differential input. The fully differential analog inputs are software configurable (I²C interface) for unipolar or bipolar, and single-ended or differential operation. The 2.048V internal reference determines its full-scale analog input range.

Features

On-board modules
- Analog Devices MAX11645 high-performance two-channel analog-to-digital converter (ADC)
Two single-ended channels or one fully differential channel
Low power consumption
High accuracy
Software-configurable unipolar/bipolar operation

Internal 2.048V reference
High-speed I²C interface
I²C interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V input voltage

Applications

Energy-harvesting sensors to portable consumer electronics
Point-of-load monitoring (voltage, current, and temperature)
