Mikroe ADC 11 Click

Mikroe ADC 11 Click features the Analog Devices LTC186416-bit 250ksps analog-to-digital converter. It has a typical supply current of 850µA at the maximum sampling frequency. The LTC1864 is among the lowest power consumption ADCs available. After conversion, the LTC1864 goes into a low-power Sleep mode, further reducing the supply current. It can run at proper micro-power levels in applications that do not require the maximum sampling rate of the LTC1864.

Features

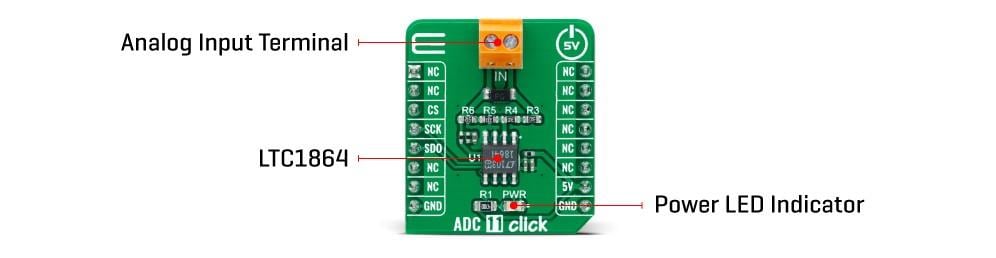

On-board modules
- Analog Devices LTC1864 16-bit successive approximation A/D converter with a sample-and-hold feature that operates on a single 5V supply
One channel 16bit 250ksps ADC
Single 5V supply
Low supply current
Auto-shutdown feature

SPI compatible interface
SPI interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
5V input voltage

Applications

High-speed data acquisition
Low power battery-operated instrumentation
Isolated and remote data acquisition
