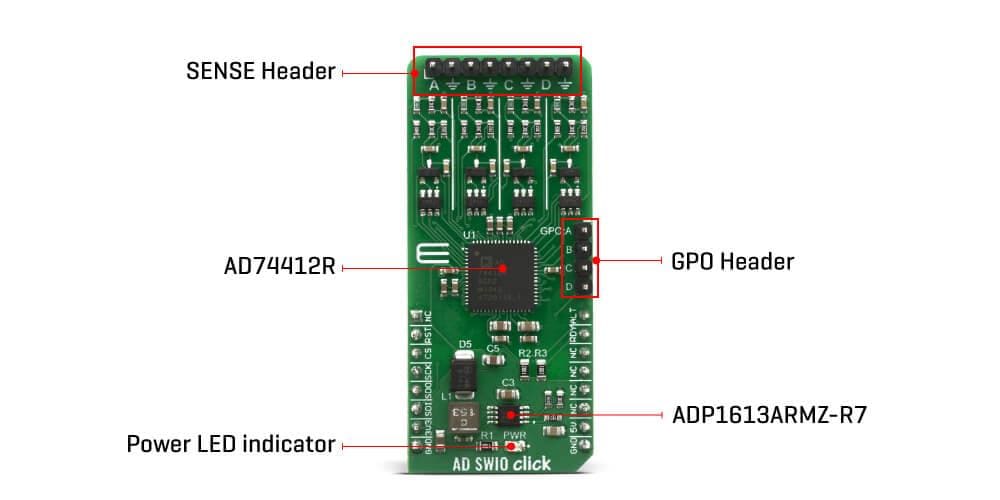

Mikroe AD-SWIO Click

Mikroe AD-SWIO Click is a quad-channel software-configurable input/output solution based on the Analog Devices AD74412R. The AD74412R is a quad-channel software-configurable input/output integrated circuit. It is ideal for building and process control applications. The device provides a fully integrated single-chip solution for input and output operation. The AD-SWIO Click contains four 13-bit digital-to-analog converters (DACs), one per channel, and a 16-bit Σ-∆ digital-to-analog converter (ADC).

Features

  • On-board modules: Analog Devices AD74412R quad-channel SWIO; ADP1613 step-up DC-to-DC switching converter
  • Optimized for 16-bit ADC and 13-bit DACs
  • Interface: GPIO, SPI
  • Compatibility: mikroBUS
  • Click board size: L (57.15mm x 25.4mm)
  • Input voltage: 3.3V, 5V

Applications

  • Process control
  • Factory automation
  • Motor drives
  • Building control systems

Overview

Mikroe AD-SWIO Click
