Mikroe Accel 24 Click

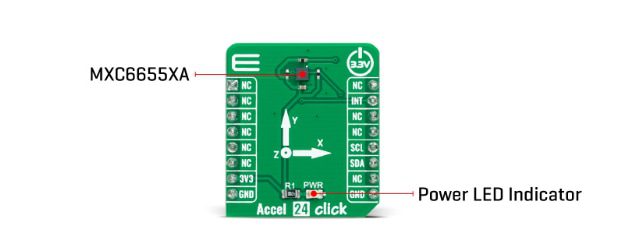

Mikroe Accel 24 Click contains the MEMSIC MXC6655XA 12-bit three-axis accelerometer. The MXC6655XA provides selectable full-scale acceleration measurements in a range of ±2g, ±4g, or ±8g in three axes with a compatible I²C serial interface and 400kHz fast mode operation. Furthermore, the MXC6655XA detects six orientation positions, X/Y shake, and shake directions with an appropriate interrupt signal for these states.

The Mikroe Accel 24 Click is engineered for a wide range of information appliances, consumer electronics, household safety applications, and many more.

Features

On-board modules
- MEMSIC MXC6655XA Digital triaxial acceleration
Low power consumption
High performance and resolution
MEMS sensor with on-chip signal processing
No moving parts
12-bit signal output for X, Y, and Z axes

6-position orientation detection
Shake detection with interrupt
I²C interface
mikroBUS compatibility
S (28.6mm x 25.4mm) Click board size
3.3V input voltage

Applications

Information appliances
Consumer electronics
Household safety applications
