Mikroe Accel 20 Click

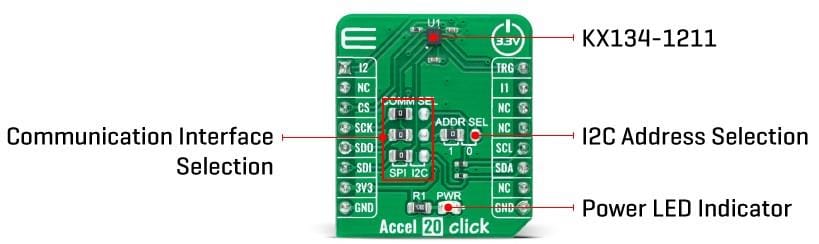

Mikroe Accel 20 Click features the ROHM Semiconductor KX134-1211 digital output 3-axis accelerometer optimized for machine condition monitoring. The click allows selectable full-scale acceleration measurements in ranges of ±8g, ±16g, ±32g, or ±64g. It has three axes with a configurable host interface that supports SPI and I²C serial communication. It also features an Advanced Data Path (ADP) technology for noise filtering and sensor signal processing, usually carried out by the MCU, to be performed by the accelerometer.

Features

On-board modules
- Rohm KX134-1211 digital triaxial acceleration sensor with a feature set optimized for machine condition monitoring
Low power consumption
High performance and resolution
High reliability
User-configurable 3-stage Advanced Data Path (ADP)
Integrated interrupt features

Excellent temperature performance with high shock survivability
Selectable serial interface
I²C, SPI interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V input voltage

Applications

Vibration and condition monitoring
Test and measurements
Predictive maintenance
