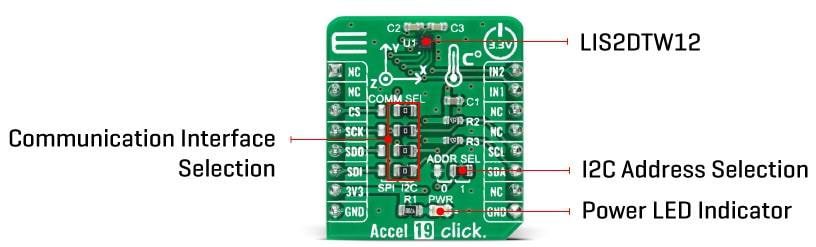

Mikroe Accel 19 Click

Mikroe Accel 19 Click features the STMicroelectronics LIS2DTW12 ultra-low-power high-performance three-axis accelerometer. It allows selectable full-scale acceleration measurements in ranges of ±2g, ±4g, ±8g, or ±16g. It allows this in three axes with a configurable host interface that supports SPI and I²C serial communication. It has a dedicated internal engine to process motion and acceleration detection with an embedded 0.8°C accuracy temperature sensor. The ODRs range from 50 to 1.6Hz with a resolution from 8 to 12 bits.

Features

On-board modules
- STMicroelectronics LIS2DTW12 highly reliable digital triaxial acceleration and temperature sensor
Low power consumption
High performance
High resolution
High reliability
Dedicated internal engine to process motion and acceleration detection

Integrated interrupt features
Selectable serial interface
I²C, SPI interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V input voltage

Applications

Motion-activated functions and user interfaces
Tap-double-tap recognition

Free-fall detection
Tracking
