Mikroe Accel 17 Click

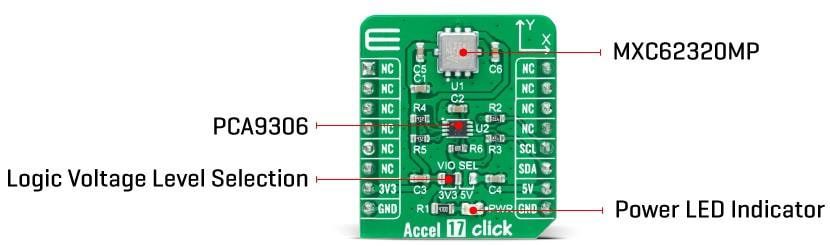

Mikroe Accel 17 Click features the MEMSIC MXC62320MP low-power digital output dual-axis accelerometer fabricated on a standard, submicron CMOS process. The MXC62320MP measures dynamic acceleration (e.g., vibration) and static acceleration (e.g., gravity). It has full-scale acceleration measurements, a range of ±2g, and a configurable host interface that supports I²C serial communication with 400kHz Fast Mode operation.

Features

On-board modules
- MEMSIC MXC62320MP low-power digital output dual-axis accelerometer fabricated on a standard, submicron CMOS process
Low power consumption
±2g dual-axis accelerometer
Embedded power up/down and self-test function

Integrated temperature sensor and mixed-signal processing
Resolution better than 1mg
I²C interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

Vibration and condition monitoring
Test and measurements
Predictive maintenance
