Mikroe Accel 16 Click

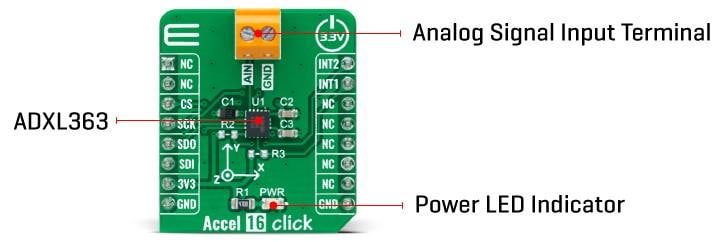

Mikroe Accel 16 Click features the Analog Devices ADXL363 micropower three-sensor combination including acceleration and temperature. The device combines a 3-axis MEMS accelerometer, a temperature sensor, and an analog-to-digital converter (ADC) input for synchronized conversions of external signals. It allows selectable full-scale acceleration measurements in ranges of ±2g, ±4g, and ±8g (with a resolution of 1mg/LSB on the ±2g range). The Accel 16 communicates via SPI serial interface providing 12-bit output resolution for all three sensors.

Features

On-board modules
- Analog Devices ADXL363 micropower complete sensor suite consisting of an accelerometer, an ADC for synchronous conversion of input from a third sensor, and a temperature sensor
Accelerometer, temperature sensor, and provision for third analog sensor input
Low power consumption
All sensors sampled synchronously

12-bit resolution for all sensors
Built-in features for motion-based system-level power savings
SPI interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V input voltage

Applications

Vibration and condition monitoring
Test and measurements
Predictive maintenance
