Mikroe 3D Hall 8 Click

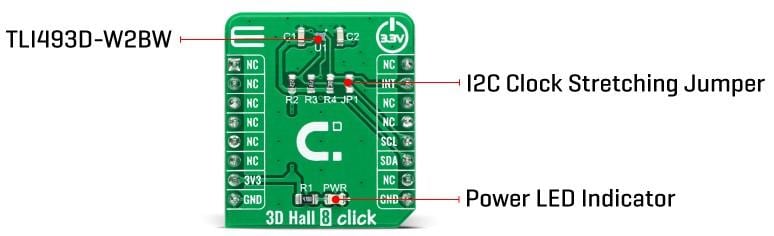

Mikroe 3D Hall 8 Click contains an ultra-small 3D-magnetic sensor for industrial and consumer applications. The board features the Infineon TLI493D-W2BW low-power 3D Hall sensor. The sensor combines high-accuracy magnetic field measurements with exceptionally low power consumption (minimum 7nA). It features an I²C interface for easy configuration by MCU and provides functionality to Wake-Up a sleeping system.

Features

On-board modules
- Infineon TLI493D-W2BW low-power 3D Hall sensor with an I²C interface and Wake-Up feature
Low power 3D Hall sensor
Wake-Up function
Power down mode with 7nA (typ.) power consumption

12-bit resolution for each measurement direction plus 10-bit temperature sensor
I²C interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V input voltage

Applications

Magnetic sensing
Robotics position sensing
Angle measurement at the end of the shaft and out of shaft configurations
