Microsemi / Microchip AgileSwitch 62EM1-00001 Electrical Driver

Microsemi / Microchip AgileSwitch 62EM1-00001 Electrical Driver provides monitoring and fault reporting information to enable better control and analysis of SiC MOSFET-based power systems. This driver includes isolated HI side and LO side DC/DC converters and offers 7 fault conditions. The 62EM1-00001 electrical driver provides up to 20A of peak current at an operating frequency of up to 200kHz. This electrical driver uses automotive temperature-grade components and allows for modifying the settings of gate resistors.

Features

  • Augmented Turn-Off™ (ATOff) (patented)
  • Power supply undervoltage lockout (UVLO)
  • Power supply overvoltage lockout (OVLO)
  • Desaturation detection settings
  • Deadtime
  • Fault lockout settings
  • Automatic reset settings
  • Single-ended (5V and 15V) or differential (RS-422 compatible) logic
  • Temperature monitoring, PWM
  • Isolated high voltage monitoring, PWM
  • 2 x 10W output power
  • Configurable gate output voltages
  • Up to 7 unique fault conditions

Applications

  • High-speed trains / traction
  • Motor drives
  • HEVs and EVs
  • Induction welding, cutting, and heating
  • Solar / PV inverters
  • Wind turbines
  • UPS
  • Frequency conversion

Videos

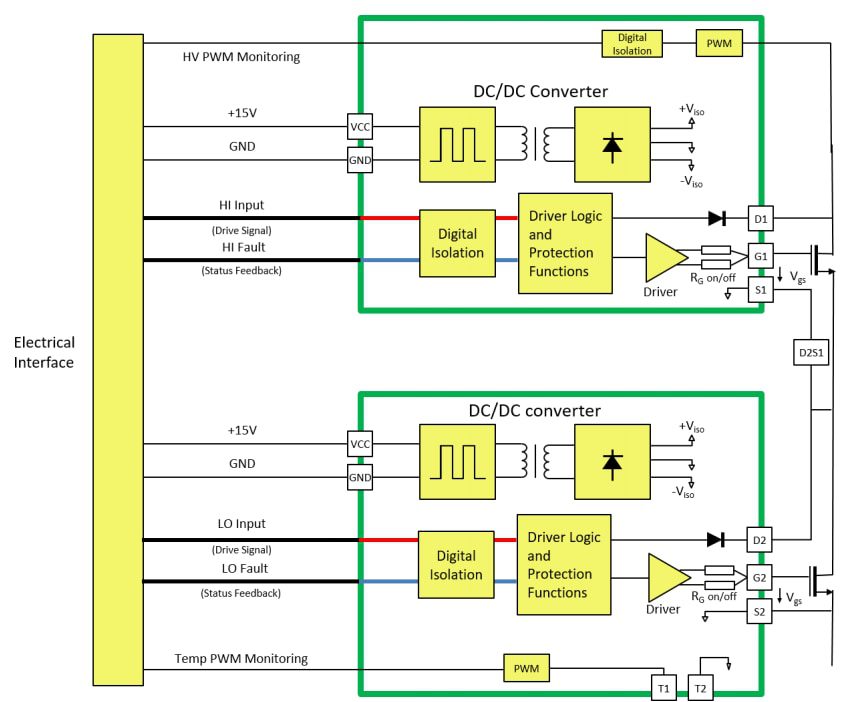

Schematic Diagram

Schematic - Microsemi / Microchip AgileSwitch 62EM1-00001 Electrical Driver
