Microchip Technology PLA133 Fanout Buffer ICs

Microchip Technology PLA133 Fanout Buffer ICs are high-performance fanout buffers for automotive and low-power applications. Microchip Technology PLA133 accepts a DC to 160MHz reference clock input. The PLA133-47 produces four low-jitter outputs, PLA133-67 has six low-jitter outputs, and PLA133-97 has nine low-jitter outputs. The PLA133-47 comes in an SOIC-8L package, the PLA133-67 in a TSSOP-16L package, and the PLA133-97 is offered in a small 3mm x 3mm wettable flanks VQFN-16L package.

Features

Automotive AEC-Q100 qualified
PLA133-47
- 1:4 LVCMOS Output Fanout Buffer from DC to 160MHz
PLA133-67
- 1:6 LVCMOS Output Fanout Buffer from DC to 160 MHz
PLA133-97
- 1:9 LVCMOS Output Fanout Buffer from DC to 160MHz
Low additive phase jitter of 60fs RMS
8mA output drive strength

Low power consumption for portable applications
Automotive applications grade 1 compliant
Low input-output delay
Output-output skew <250ps
2.5V to 3.3V, ±10% operation
1.8V +10%/–5% operation up to 67MHz
-40°C to +125°C wide temperature range
Available in 8-pin SOIC package

Applications

Automotive applications
ADAS vision system
Infotainment and dashboard

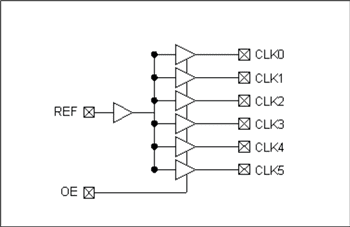

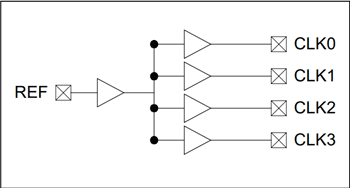

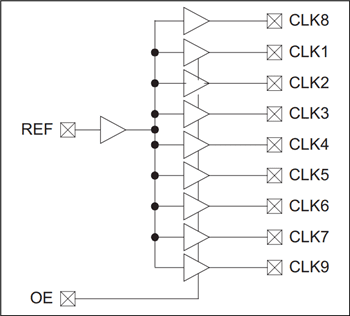

Block Diagram

Block Diagram - Microchip Technology PLA133 Fanout Buffer ICs
