Microchip Technology PIC32CZ CA90 Curiosity Ultra Development Board

Microchip Technology PIC32CZ CA90 Curiosity Ultra Development Board (EV16W43A) is the hardware platform for evaluating the Arm^® Cortex^®-M7 processor-based PIC32CZ CA90 MCUs. This board is supported by MPLAB^® Integrated Development Environment (IDE) and MPLAB Harmony. The PIC32CZ CA90 development board features an embedded programmer/debugger and does not require any supplementary hardware to get started. This board includes connectors to integrate Arduino^® Uno R3, MikroElektronika Click boards™ or Xplained Pro expansion boards for developing Bluetooth^® audio, robotics, and other proof-of-concept designs.

The PIC32CZ CA90 development board is equipped with a PIC32CZ8110CA90208 microcontroller featuring 300MHz clock speed, 8MB flash memory, and 1MB Static Random Access Memory (SRAM). This board features a Virtual COM port (VCOM), a Data Gateway Interface (DGI), and an onboard temperature sensor for monitoring ambient temperature levels.

Features

PIC32CZ8110CA90208-I/8MX microcontroller:
- 300MHz clock speed
- 8MB flash memory
- 1MB SRAM
On-board debugger (PKoB4):
- Real-time programming and debugging
- Virtual COM (VCOM) port
- Data Gateway Interface (DGI)
Arduino Uno R3 compatible interface

Xplained Pro extension compatible interface
MikroBus™ socket
On-board temperature sensor
User button
User LED
Graphics interface
G-bit Ethernet
Two high-speed USB (Type-C and Micro A/B)

Microchip Technology PIC32CZ CA90 Curiosity Ultra Development Board

Features

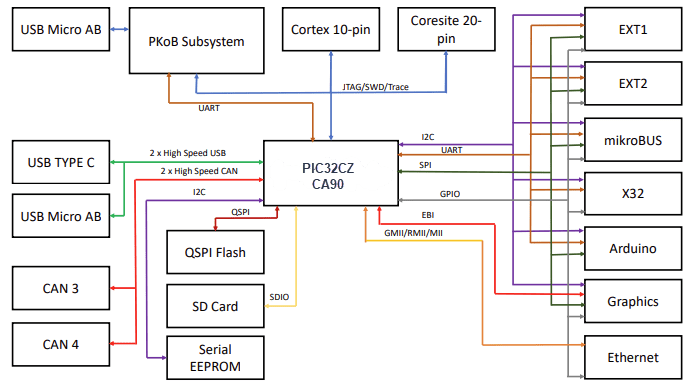

System Block Diagram

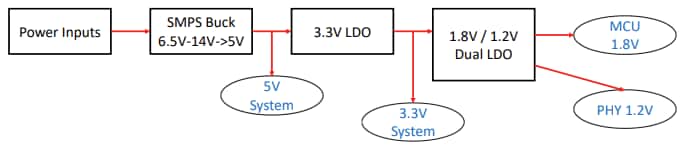

Power Block Diagram
