Microchip Technology PIC32CXMTC-DB Demonstration Board

Microchip Technology PIC32CXMTC-DB Demonstration Board is used to evaluate the PIC32CXMTC Series. This Microchip Technology device is a system-on-chip solution for residential smart meter applications built around dual 32-bit Arm® Cortex®-M4F processors. The user application runs in Core 0 at a maximum frequency of 200MHz, and the metrology library runs in Core 1 up to 240MHz.

Features

Used to evaluate the PIC32CXMTC Series
Dual Arm Cortex-M4F core (application and metrology)
3-Phase AFE ATSENSE301 (3 voltages and 4 currents) with network divider and filters
Voltage range measurement is from 90 V_AC to 264 V_AC
Can be extended to 291V_AC, removing the power supply (U1)
Current range measurement depends on the current sensor used and the configuration of the internal PGAs
The current sensor input channels come populated with 3.24Ω burden resistors for a current transformer (CT)
Compliant with CT, Shunt, or Rogowski Coil sensors
Battery-backed real-time clock and power supply monitor
64Mbit Quad IO SPI Flash memory for meter data storage and firmware update

User interfaces
- Isolated UART interface by USB bridge
- Opto-Port interface compliant with ANSI C12.20 protocol for AMR
- Isolated access to metering pulses (Wh, VARh, A2h) by an Opto-Port and/or an isolated interface
- Extension connector for External AFE connection such as MCP3910
- Custom Liquid Crystal Display dedicated to Microchip metering platform
- Interface for Xplained PRO boards (ATREB215-XPRO and PL460-EK) with XPRO Power Header and mikroBUS™ standard add-on boards

Applications

Residential smart metering
Industrial automation
Internet of Things (IoT)
Smart grid
Home automation

Building automation
Renewable energy
Medical devices
Automotive

Microchip Technology PIC32CXMTC-DB Demonstration Board

Features

Applications

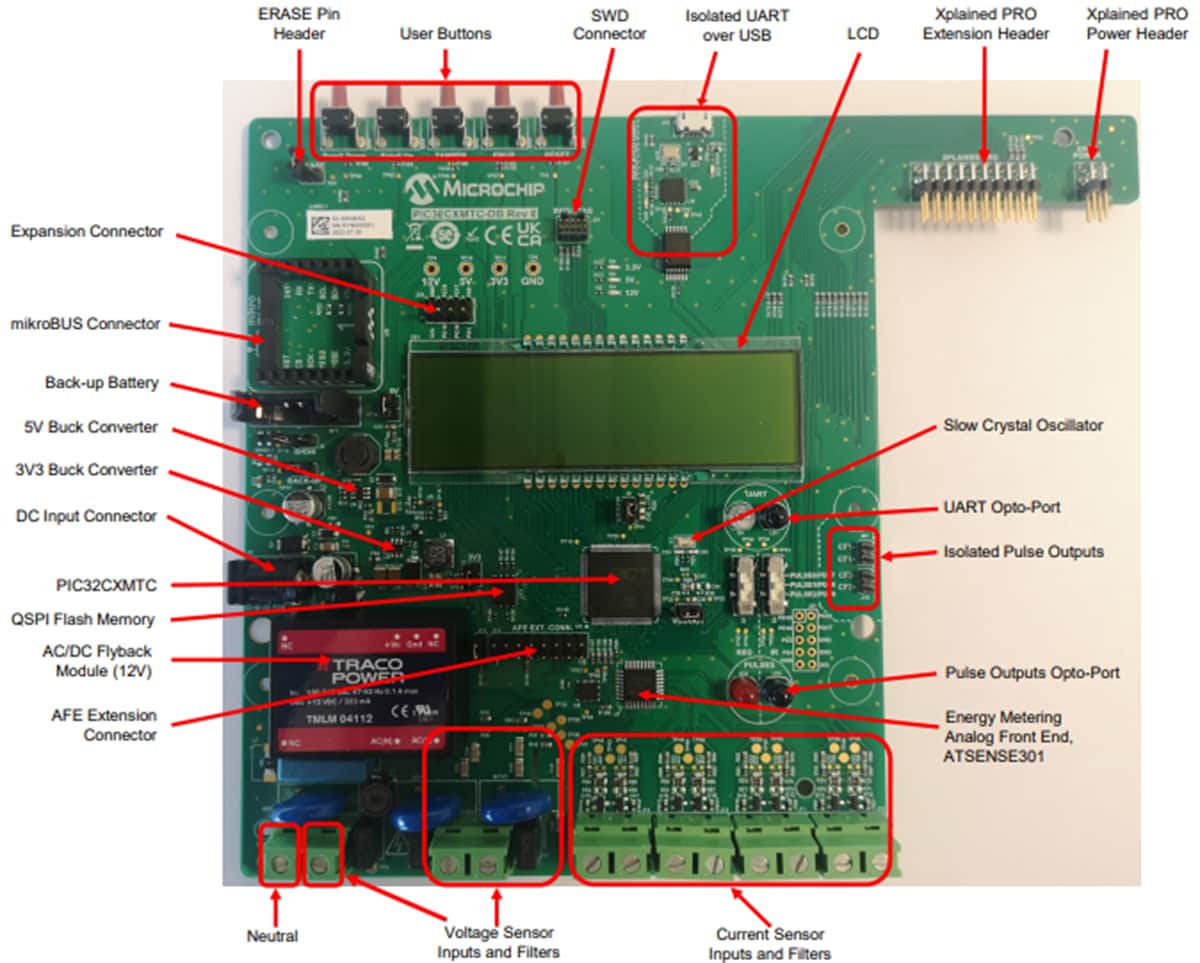

Board Description

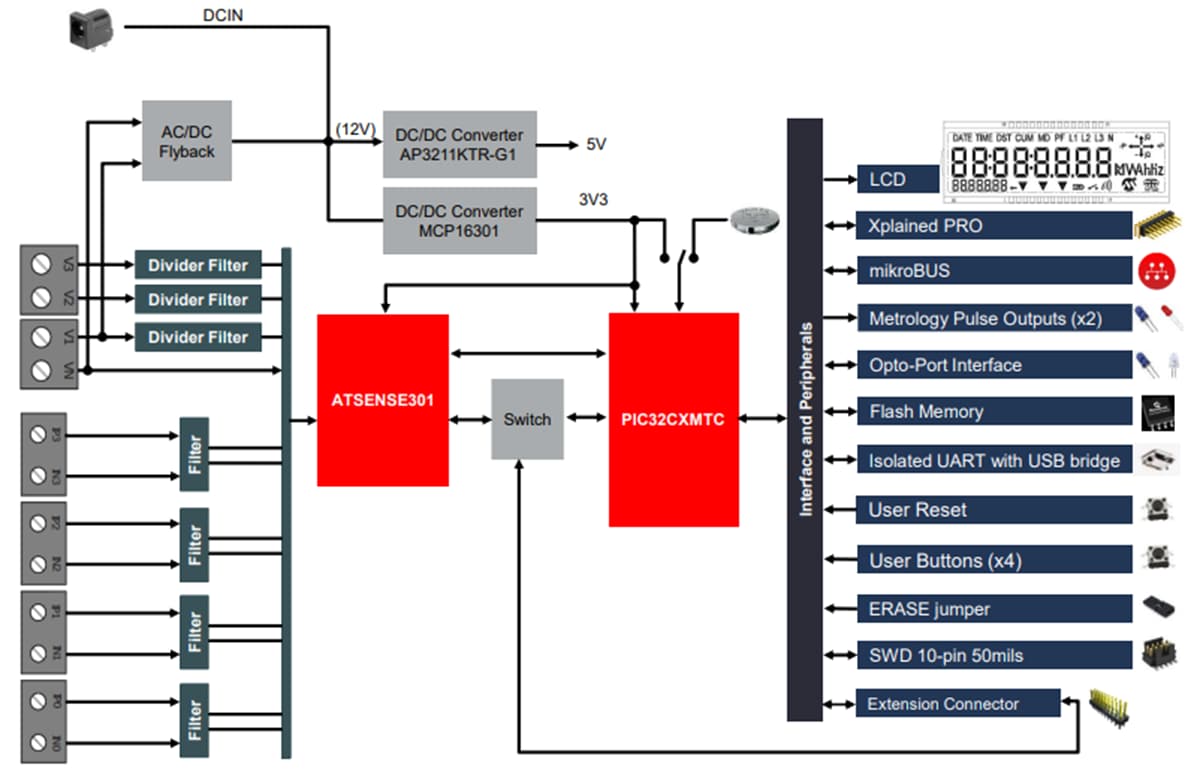

Block Diagram
