Microchip Technology PIC18-Q20 Microcontrollers

Microchip Technology PIC18-Q20 Microcontrollers are one of the smaller PIC18 product families available in 14/20-pin devices for sensor-interfacing, real-time control, and communication applications. This family showcases the Improved Inter-Integrated Circuit® (I3C) Target module with a higher communication rate and a 10-bit 300ksps ADC with Computation for responsive sensor designs. The family features a MultiVoltage I/O (MVIO) interface with multiple pins powered by V_DDIO2 and V_DDIO3, allowing these pins to operate at a different voltage domain than the rest of the microcontroller. The Microchip Technology PIC18-Q20 also features the 8-bit Signal Routing Port module to interconnect digital peripherals without using external pins. Additional features include a vectored interrupt controller with fixed latency for handling interrupts, a system bus arbiter, Direct Memory Access (DMA) capabilities, UART with support for asynchronous, DMX, DALI, and LIN protocols, SPI, I²C, and a programmable 32-bit CRC with memory scan. The Microchip Technology PIC18-Q20 family also includes Memory Access Partition (MAP) and SAFLOCK to support users in bootloader applications. SAFLOCK allows one-time programmability of the Storage Area Flash (SAF). The Device Information Area (DIA) stores factory calibration values to help improve temperature sensor accuracy.

Features

C compiler-optimized RISC architecture
Operating speed
- DC – 64MHz clock input
- 62.5ns minimum instruction cycle
Four Direct Memory Access (DMA) controllers
Vectored interrupt capability
128-level deep hardware stack
Low-current Power-on Reset (POR)
Configurable Power-up Timer (PWRT)
Brown-out Reset (BOR)
Low-power BOR (LPBOR) option
Windowed Watchdog Timer (WWDT)
Operating characteristics
- Operating voltage range (V_DD) of –1.8V to 5.5V
- Multi-voltage I/O (MVIO) Range (V_DDIO2 and V_DDIO3) of –1.62V to 5.5V (3.63V with I3C enabled)
- Temperature range
  - Industrial: -40°C to 85°C
  - Extended: -40°C to 125°C
Memory
- Up to 64KB of program Flash memory
- Up to 4KB of data SRAM memory
- 256bytes data EEPROM
- Memory access partition: The program Flash memory can be partitioned into
  - Application block
  - Boot block
  - Storage Area Flash (SAF) block
- Programmable code protection and write protection
- Device Information Area (DIA) stores
  - Temperature indicator factory calibrated data
  - Fixed Voltage Reference (FVR) measurement data
  - Microchip unique identifier
- Device Characteristics Information (DCI) area stores
  - Program/erase row sizes
  - Pin count details
  - EEPROM size
- Direct, indirect, and relative addressing modes
Power-saving functionality
- Doze: CPU and peripherals running at different cycle rates (CPU Is typically slower)
- Idle: CPU halted while peripherals operate
- Sleep: Lowest power consumption
- Peripheral Module Disable (PMD)
- Low-power mode features
  - Sleep: < 1µA typical @ 3V
  - Operating current is 48µA @ 32kHz, 3V, typical

Digital peripherals
- Two 16-bit Pulse-Width Modulators (PWM)
- Two 16-bit timers (TMR0/1)
- Two 8-bit timers (TMR2/4) with Hardware Limit Timer (HLT)
- Two 16-bit universal timers (TU16A/16B)
- Four Configurable Logic Cells (CLC)
- One Complimentary Waveform Generator (CWG)
- Two Capture/Compare/PWM (CCP) modules
- Programmable CRC with memory scan
- Two UART modules
- One SPI module
- One I²C module, SMBus, PMBus™ compatible
- Up to two I3C modules
- One signal-routing port module
- Peripheral Pin Select (PPS)
Analog peripherals
- 10-bit Analog-to-Digital Converter with computation (ADCC)
- Voltage reference
Clocking structure
- High-precision internal oscillator block (HFINTOSC)
- 32kHz Low-Power Internal Oscillator (LFINTOSC)
- External 32kHz Crystal Oscillator (SOSC)
- External high-frequency oscillator block
- Fail-safe clock monitor
- Oscillator Start-up Timer (OST)
Programming/debug features
- In-Circuit Serial Programming™ (ICSP™) via two pins
- In-circuit debug (ICD) with Three Breakpoints via two pins
- Debug integrated on-chip

Applications

Automotive
Industrial control
Computing
Consumer electronics

Medical devices
Wearables
Touch sensing
Memory management

Microchip Technology PIC18-Q20 Microcontrollers

Features

Applications

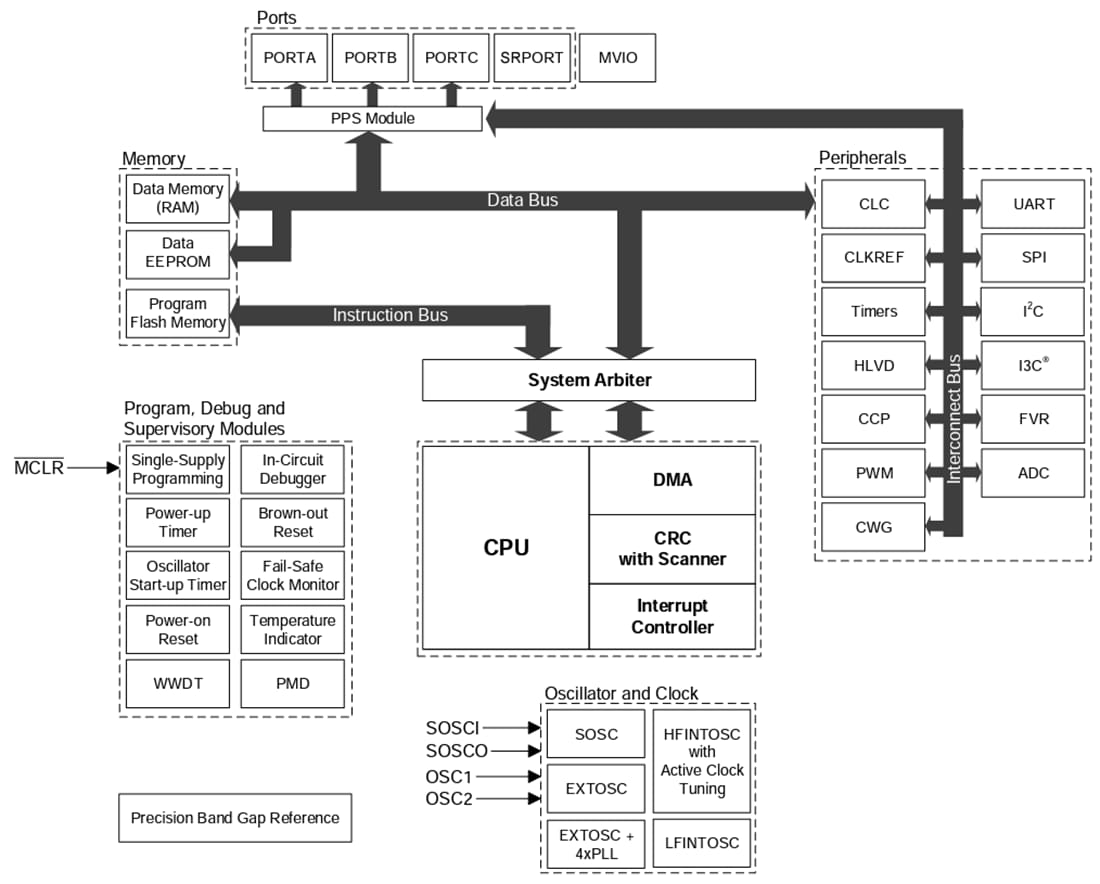

Block Diagram
