Microchip Technology PIC16F18114/15/24/25/44/45 8-Bit MCUs

Microchip Technology PIC16F18114/15/24/25/44/45 8-Bit MCUs include analog peripherals that enable precision sensor applications. The 8-pin to 44-pin packaged PIC16F18114/15/24/25/44/45 offers a memory range of 7KB to 28KB with speeds up to 32MHz. These 8-bit MCUs feature a 12-bit differential Analog-to-Digital Converter with Computation (ADCC), two 8-bit Digital-to-Analog Converters (DAC), a 16-bit Pulse-Width Modulation (PWM) peripheral, and many more waveform control and communication peripherals. The feature-rich device’s small form factor is ideal for low-cost, energy-efficient analog sensor applications with higher resolution requirements.

Features

C Compiler-optimized RISC architecture
Operating speeds
- DC to 32MHz clock input
- 125ns minimum instruction time
16-level deep hardware stack
Low-current Power-on Reset (POR)
Configurable Power-up Timer (PWRT)

Brown-out Reset (BOR)
Low-Power Brown-out Reset (LPBOR)
Windowed Watchdog Timer (WWDT)
Up to 28KB of program flash memory
Up to 2KB of data SRAM memory
Up to 256Bytes of data EEPROM memory

Specifications

1.8V to 5.5V operating voltage range
Temperature ranges
- -40°C to +85°C industrial
- -40°C to +125°C extended

Microchip Technology PIC16F18114/15/24/25/44/45 8-Bit MCUs

Features

Specifications

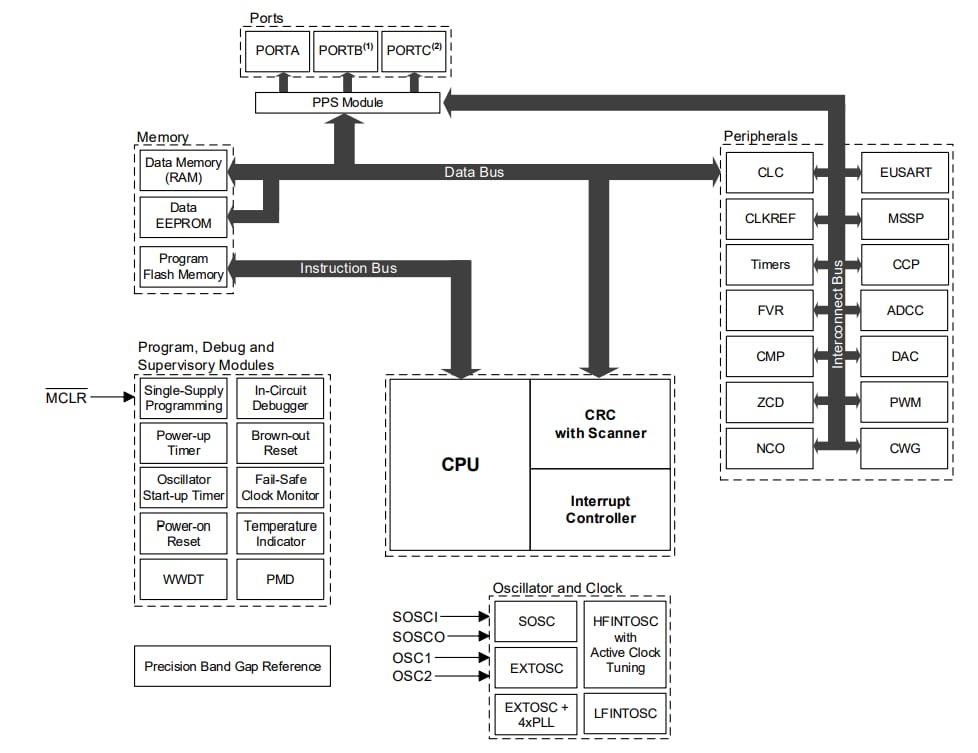

Block Diagram

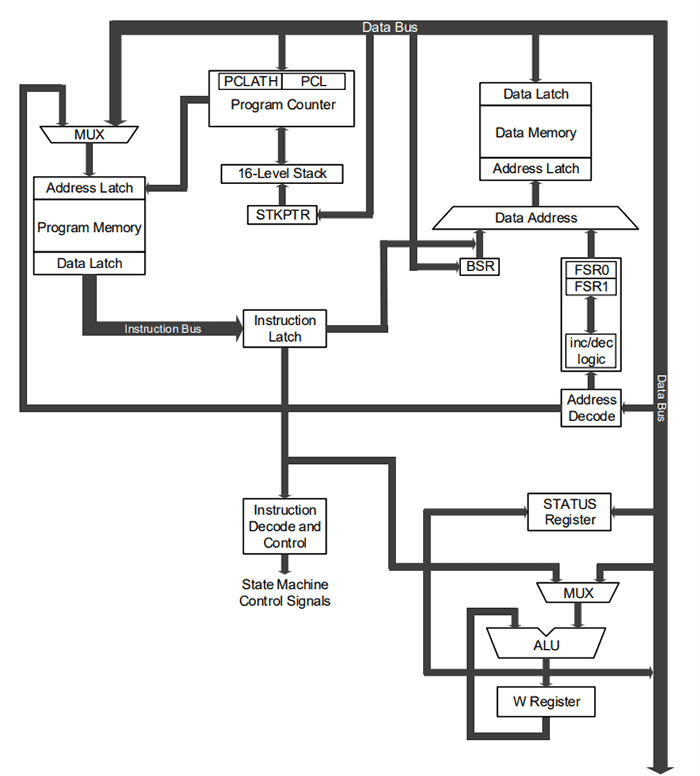

Core Data Path
