Microchip Technology MSC400SMA330B4 N-Channel Power MOSFET

Microchip Technology MSC400SMA330B4 N-Channel Power MOSFET is a 3300V, 400mΩ SiC MOSFET in a TO-247-4L package with a source sense. This MOSFET delivers excellent performance, helping to maximize system efficiency and minimize system weight and size. The MSC400SMA330B4 MOSFET is a fast and reliable body diode with superior avalanche ruggedness and fast switching speeds. This power MOSFET offers low capacitances and low gate charge. The MSC400SMA330B4 MOSFET eliminates the need for an external freewheeling diode, enhancing overall system efficiency and simplifying implementation. This power MOSFET features a stable operation at high junction temperature (T_J(max)=150°C) and is RoHS compliant. Typical applications include smart grid transmission and distribution, induction heating and welding, H/EV powertrain and EV charger, power supply and distribution, and industrial motor drives.

Features

Low capacitances and low gate charge
Fast switching speeds due to low internal gate resistance (ESR)
Fast and reliable body diode
Superior avalanche ruggedness

High efficiency to enable a lighter, more compact system
Eliminates the need for an external freewheeling diode
Lower system cost of ownership

Specifications

3300V drain-source voltage
Continuous drain current:
- 11A @ T_C=25°C
- 7A @ T_C=100°C
27A pulsed drain current
416mΩ typical drain-source on-state resistance

131W total power dissipation @ T_C=25°C
0.64°C/W typical junction-to-case thermal resistance
-55°C to 150°C operating junction temperature range
TO-247-4L package
RoHS compliant

Applications

PV inverter, converter, and industrial motor drives
Smart grid transmission and distribution
Induction heating and welding

H/EV powertrain and EV charger
Power supply and distribution

Microchip Technology MSC400SMA330B4 N-Channel Power MOSFET

Features

Specifications

Applications

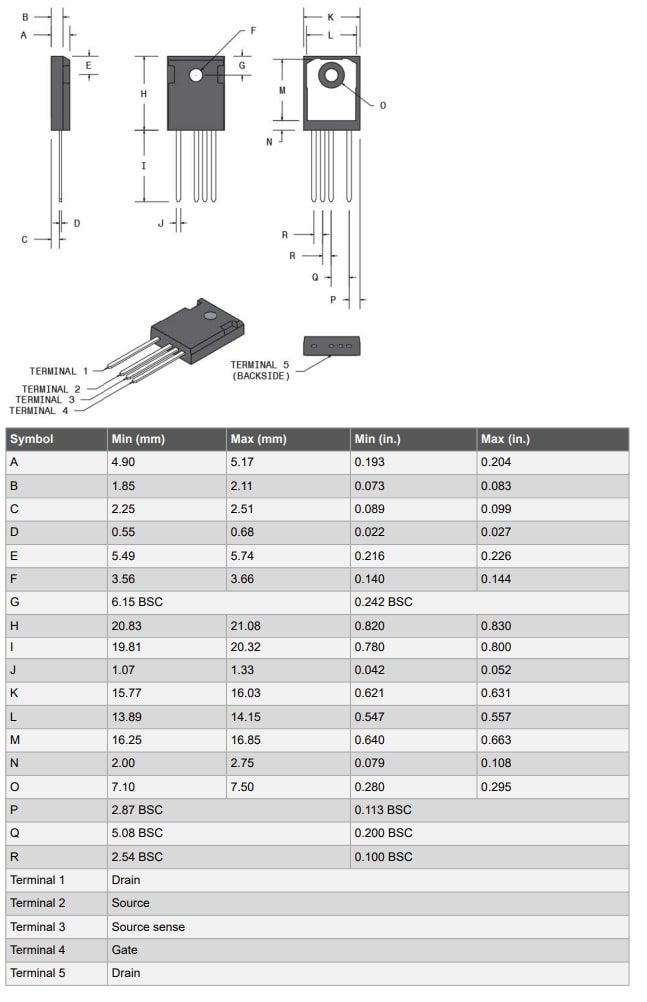

Package Outline Drawing
