Microchip Technology MPLAB® ICD 5 In-Circuit Debugger/Programmer Kit

Microchip Technology MPLAB® ICD 5 In-Circuit Debugger/Programmer Kit (DV164055) is a fast, feature-rich emulation and programming tool for Microchip microcontrollers (MCUs), including PIC®, dsPIC®, AVR®, and SAM (Arm®) devices. The MPLAB ICD 5 debugs and programs with a powerful, easy-to-use MPLAB X Integrated Development Environment (IDE) Graphical User Interface (GUI). Connect to a PC via a high-speed USB 2.0 interface or Ethernet. Utilizing a flat cable, DV164055 connects to targets with the debugger at one end and the target device at the other. The debugger communicates with devices with built-in emulation circuitry instead of special debugger chips and executes code like an actual device. Accessible interactively, all features of the target device can be set and modified by the MPLAB X IDE interface.

Features

Connects to a computer via high-speed USB 2.0 or Ethernet
Debugs at full speed
Monitors internal file registers
Configures pin drivers
Connects to targets using an RJ11 or RJ45 modular cable, also connects to legacy targets
Supports multiple breakpoints, stopwatch, and source code file debugging
Programs devices using MPLAB X IDE or MPLAB IPE
Debugs application on user’s hardware in real time
Sets breakpoints based on internal events
Field-upgradeable through a firmware download
Adds device support and features by installing the latest version of the device and tool packs, available as a free download at www.microchip.com/mplabx/
0 to +70°C operating temperature range
Performance/speed
- No firmware download delays are incurred when switching devices
- 32-bit MCU running at 300MHz with 384K bytes of RAM
- 4MB buffer memory

Safety
- Receive feedback from the debugger when the external power supply is needed for the target
- Supports target supply voltages from 1.2V to 5.5V
- Safely power up to 1A with the PoE Power Supply or a PC capable of providing 3A on the USB Type-C® connector
- Protection circuits are added to the probe drivers to guard against power surges from the target
- V_DD and V_PP voltage monitors protect against overvoltage conditions, all lines have over-current protection
- Power pins are physically isolated until the voltage is determined to be safe for connection, programmable resistor value, and direction (pull-up, pull-down, or nonexistent)
- Controlled programming speed provides flexibility to overcome target board design issues
- CE and RoHS compliant

Kit Contents

Rectangular MPLAB ICD 5 unit housed in a durable black and metallic case accented with an LED indicator bar, on the sides of the unit are the USB connector, Ethernet connector, power connector, and communication/debug connectors
USB Type-C® to Type-C cable for default computer-to-debugger communication
Flat cable for connectivity to target devices

Required Equipment

Available USB 2.0 port
Microsoft Windows 10 or later, macOS®, or Linux® operating systems
MPLAB X IDE version 6.10 or later

Microchip Technology MPLAB® ICD 5 In-Circuit Debugger/Programmer Kit

Features

Kit Contents

Required Equipment

Videos

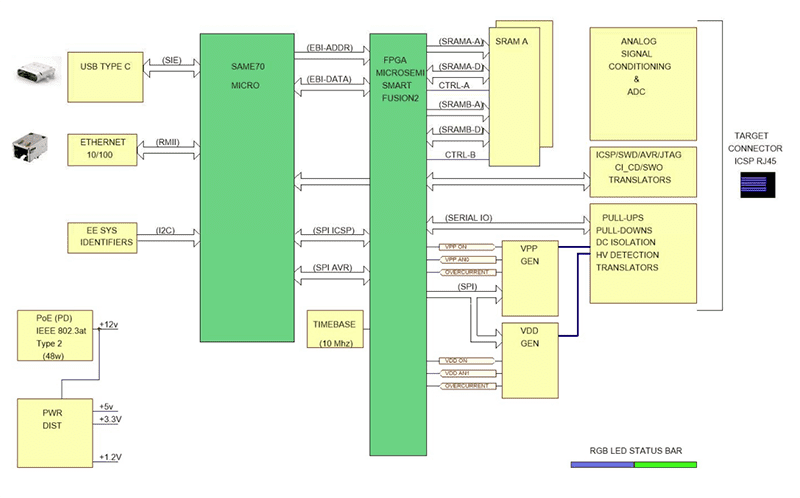

Block Diagram
