Microchip Technology MCP998x Automotive Temperature Sensors

Microchip Technology MCP998x Automotive Temperature Sensors are ideal for effective heat control in automotive applications. The Microchip Technology MCP998x are AEC-Q100-qualified multi-channel temperature sensors. With ten devices offering 1°C accuracy for monitoring up to five channels, the sensors provide reliable solutions with shutdown options resistant to software overrides.

Features

1°C accuracy
Up to 5x channels of temperature monitoring
Resistor-settable shutdown options that cannot be overwritten by software

AEC-Q100 Grade 1 qualified
Resistor error correction for eliminating long PCB trace resistance
Supply voltage range of 1.7V to 3.6V

Applications

Infotainment systems – radio and LCD screens
Side-view mirrors
Diagnostics
Engine control
HID lamps
Advanced Driver-Assistance Systems (ADAS)

Automotive servers
Graphics/video processing
Telematics
Body electronics
HVAC systems

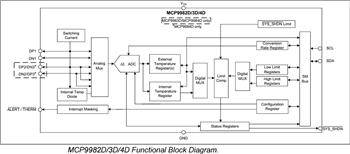

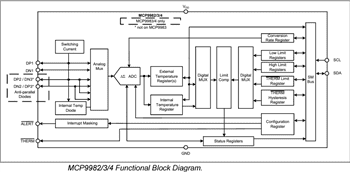

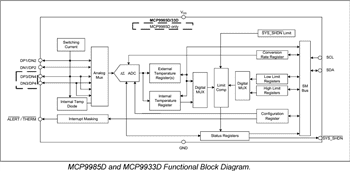

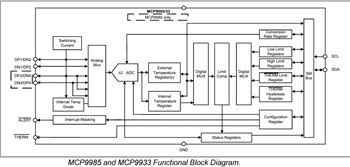

Block Diagrams

Block Diagram - Microchip Technology MCP998x Automotive Temperature Sensors
