Microchip Technology MCP649x EMI Filtering Operational Amplifiers

Microchip Technology MCP649x EMI Filtering Operational Amplifiers operate with a single supply voltage as low as 1.8V while drawing a low quiescent current of 2.5mA (maximum per amplifier). These op amps feature a low-input offset voltage (±1.6mV, maximum), rail-to-rail input/output operation, a 30MHz gain bandwidth (typical), and stable unity gain. EMI protection minimizes the effects of electromagnetic interference from external sources, making the components suited for EMI-sensitive applications such as power lines, radio stations, and mobile communications. The op-amps are offered in single (MCP6496), dual (MCP6497), and quad (MCP6499) packages. The Microchip Technology MCP649x EMI Filtering Operational Amplifiers are designed using an advanced CMOS process and fully specified in the extended temperature range from -40°C to +125°C.

Features

Enhanced EMI Protection
Rail-to-rail input/output
Unity gain stable
No phase reversal
AEC-Q100 qualified

Small package options
- Singles in SC70-5 and SOT-23-5
- Dual in SOIC-8 and MSOP-8
- Quad in SOIC-14 and TSSOP-14

Applications

Automotive
Portable equipment
Medical diagnostic equipment

Active filters
Sensor conditioning

Specifications

±1.6mV (maximum) low-input offset voltage
±0.6µV/°C input offset drift with temperature
100dB typical power supply rejection ratio
130dB typical DC open-loop gain (large signal)
2.5mA (maximum)/amplifier quiescent current
30MHz (typical) gain bandwidth
53° phase margin (typical)

40V/µs (typical) slew rate
0.4µs to 0.5µs typical settling time
1.8V to 5.5V supply voltage range
2µs (typical) quick start-up time
122dB typical power supply crosstalk
+120°C/W to +331°C/W thermal resistance range
-40°C to +125°C extended temperature range

Microchip Technology MCP649x EMI Filtering Operational Amplifiers

Features

Applications

Specifications

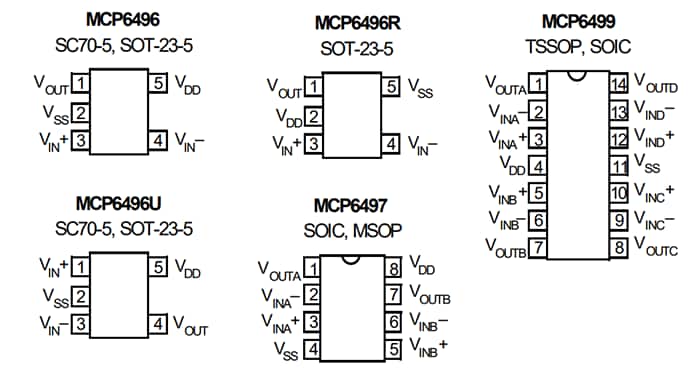

Packages
