Microchip Technology MCP3004 & MCP3008 Analog-to-Digital Converters

Microchip Technology MCP3004 and MCP3008 Analog-to-Digital Converters are successive approximation 10-bit Analogto-Digital (A/D) converters. The Microchip Technology converters feature an onboard sample and hold circuitry. The MCP3004 is programmable to provide two pseudo-differential input pairs or four single-ended inputs. The MCP3008 is programmable to provide four pseudo-differential input pairs or eight single-ended inputs.

Features

10-bit resolution
± 1 LSB max DNL
± 1 LSB max INL
4 (MCP3004) or 8 (MCP3008) input channels
Analog inputs programmable as single-ended or pseudo-differential pairs
On-chip sample and hold
SPI serial interface (modes 0,0 and 1,1)

Single supply operation 2.7V-5.5V
200ksps max. sampling rate at V_DD = 5V
75ksps max. sampling rate at V_DD = 2.7V
Low-power CMOS technology
5nA typical standby current, 2µA max.
500µA max. active current at 5V
Industrial temp range -40°C to +85°C
Available in PDIP, SOIC, and TSSOP packages

Applications

Sensor interface
Process control

Data acquisition
Battery operated systems

Microchip Technology MCP3004 & MCP3008 Analog-to-Digital Converters

Features

Applications

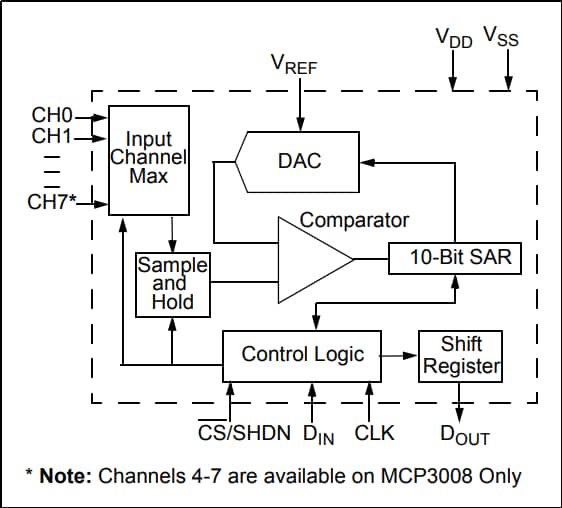

Functional Block Diagram
