Microchip Technology MAQ5300 Automotive CMOS Regulators

Microchip Technology MAQ5300 Automotive CMOS Regulators are ultra-small, ultra-low dropout regulators (ULDO) ideal for demanding automotive applications, including infotainment, camera module, image sensors, and anywhere PCB space is limited.

The Microchip MAQ5300 Automotive CMOS Regulators deliver extremely low dropout voltage, very low output noise, and can operate from a 2.3V to 5.5V input while delivering up to 300mA. Additional features include 2% initial accuracy, low ground current (typically 85pA total), thermal shutdown, and current-limit protection. The MAQ5300 Regulators have the option of a zero-off-mode current state, which draws no current when disabled.

The MAQ5300 Automotive CMOS Regulators operate at a junction temperature range of -40°C to +125°C and are available in fixed output voltages in a lead-free (RoHS-compliant) 6-pin 2mm x 2mm DFN package.

Features

Small 2mm x 2mm DFN package
Low dropout voltage of 100mV at 300mA
Output noise 120pVw3
Input voltage range of 2.3V to 5.5V
300mA guaranteed output current
Stable with ceramic output capacitors

Low quiescent current of 85pA total
30ps tum-on time
High output accuracy
- ±2% initial accuracy
- ±3% over temperature
Thermal shutdown and current-limit protection

Applications

CMOS image sensors
Backup camera modules

GPS Receivers
Infotainment

Microchip Technology MAQ5300 Automotive CMOS Regulators

Features

Applications

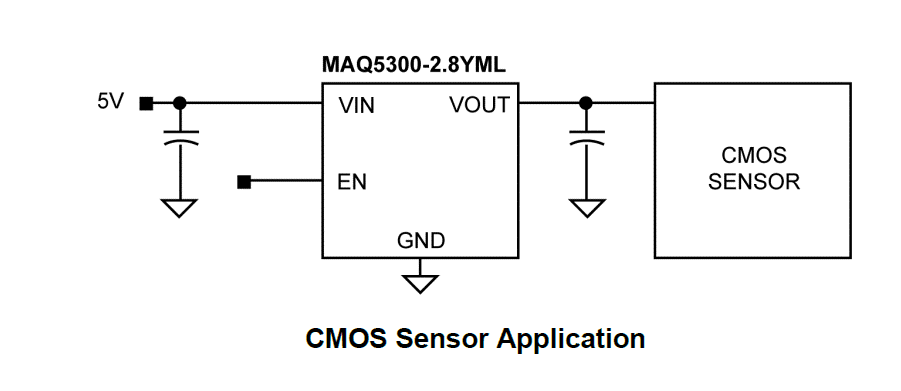

Typical Application

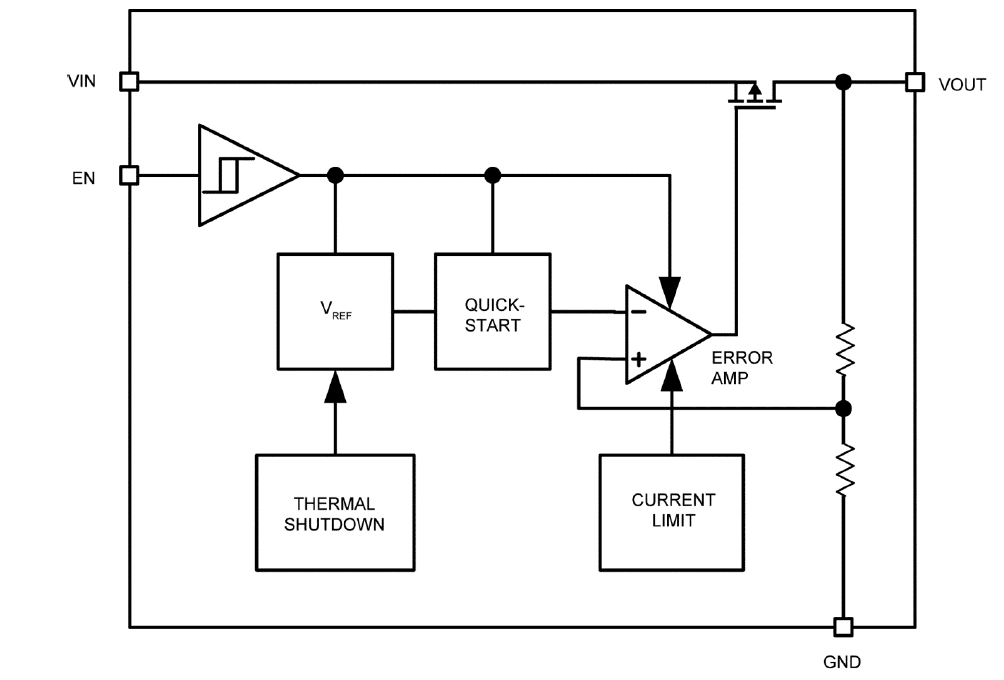

Block Diagram
