Microchip Technology Gate Drivers

Microchip Technology Gate Drivers are high-speed MOSFET drivers that provide up to 9.0A of peak current while operating from a single 4.5V to 18V supply. The devices feature low shoot-through current, fast rise and fall times, and matched propagation delays. They are ideal for high switching frequency applications.

Features

9.0A (typical) high peak output current
Wide input supply voltage operating range
- 4.5V to 18V
Low shoot-through/cross-conduction current in output stage
High capacitive load drive capability
- 10,000pF in 24ns (typical)
27ns (tD1), 27ns (tD2) (typical) short delay times

360µA (typical) low supply current
Low-voltage threshold input and enable with hysteresis
Withstands 500mA reverse current latch-up protected
Space-saving packages
- 8-lead MSOP
- 8-lead SOIC
- 8-lead 2 x 3 TDFN

Applications

Switch-mode power supplies
Pulse transformer drive
Line drivers

Level translator
Motor and solenoid drive

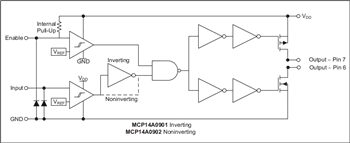

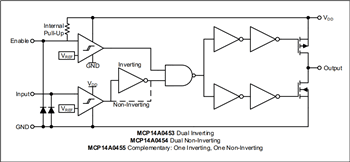

Block Diagram
