Microchip Technology EV81X90A PIC32CM Curiosity Pro Development Board

Microchip Technology EV81X90A PIC32CM Curiosity Pro Development Board evaluates the Microchip PIC32CM JH01 microcontroller. The Microchip Technology EV81X90A board offers a comprehensive set of features that make it easy to get started with the PIC32CM JH01’s peripherals. The MCU integrates advanced features, including Secure Boot, and Functional Safety Features, including ECC and mBIST. The PIC32CM includes dual CAN FD interfaces, a peripheral touch controller (PTC) with Driven Shield+, and ADC, DAC, and analog comparators.

Features

100-pin TQFP PIC32CM JH01 microcontroller
Embedded Debugger
- micro-USB interface
- Auto-ID for daughter board identification in MPLAB X IDE
- One yellow status LED
- One green board power LED
- Symbolic debugging of complex data types, including scope information
- Programming and debugging of on-board PIC32CM JH01 through Serial Wire Debug (SWD)
- SPI, I²C, and four GPIOs data gateway interface
- Virtual COM port (CDC)
- Control of on-board power switch to protect connected extensions against high voltage
Digital I/O
- Two mechanical buttons (user and reset button)
- One driven shield Touch button
- One yellow user LED
- Three extension headers compatible with a wide range of Xplained Pro extension kits
- Arduino uno connector

Two selectable target voltages
- 3.3V
- 5.0V
Voltage level shifters between the target section and the EDBG section
32.768kHz crystal mounted
32MHz crystal mounted
Trust Anchor (TA100) secure element
Two CAN transceivers with jumpers for connection to external devices or loopback between the two CAN interfaces
LIN transceiver
- Wake-up button
- Host node pull-up jumper
- Alternate LIN power jumper
DAC output connector
Analog voltage reference connector with filtered power supply
- ADC/DAC V_REF
5-pin Position Decoder (PDEC) connector
Supported with application examples in MPLAB Harmony v3

Applications

Automotive systems
Industrial control systems
Home automation systems
Medical devices
Robotics

Smart grid systems
Security systems
Wireless sensor networks
Energy management systems
Consumer electronics

Microchip Technology EV81X90A PIC32CM Curiosity Pro Development Board

Features

Applications

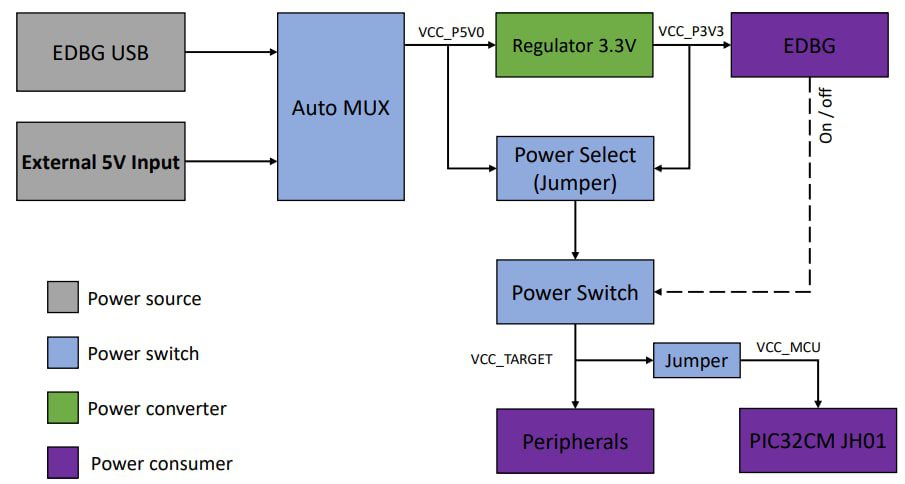

Block Diagram
