Microchip Technology EV71S00A MIC21LV32 Evaluation Board

Microchip Technology EV71S00A MIC21LV32 Evaluation Board facilitates an extensive evaluation of the features and performance of the MIC21LV32 capabilities. The MIC21LV32 is a constant on-time, dual-phase synchronous buck controller featuring a unique adaptive on-time control architecture with stackable features up to eight phases.

The Microchip EV71S00A MIC21LV32 Evaluation Board is based on a buck topology and provides an adjustable output voltage between 0.6V and 28V, with a maximum current of 80A when supplied with 4.5V to 36V input voltage. Nevertheless, the board is tuned and optimized for 12V input (±20%) and 0.82V/80A output.

Features

Input voltage range from 4.5V to 36V
Adjustable output from 0.6V to 28V
Adaptive constant on-time control
High Delta-V operation
Any Capacitor™ stable
0.6V Internal reference with ±1% accuracy
Operates in CCM, stackable for multiphase operation up to eight phases
Ripple injection from the third node which allows greater than 50% duty cycles
Hyperlight load and phase shedding
Automatic phase shedding with user settable thresholds or externally controlled phase shedding for the slave

Accurate current balancing between phases
Accurate phasing between phases which are always 180o out of phase
100KHZ to 800KHZ switching Frequency per phase
High Voltage Internal 5V LDO for single-supply operation
Secondary LDO to improve system efficiency
Supports start-up to pre-bias output
Remote sense amplifier for tight output regulation
Supports Adaptive voltage positioning (AVP) or Droop
Precision Enable function for low standby current
External programmable soft start to reduce inrush current
Programmable current limit and hiccup short circuit protection

Kit Contents

MIC21LV32 Evaluation board PCB
Important information sheet
China RoHS declaration

Microchip Technology EV71S00A MIC21LV32 Evaluation Board

Features

Kit Contents

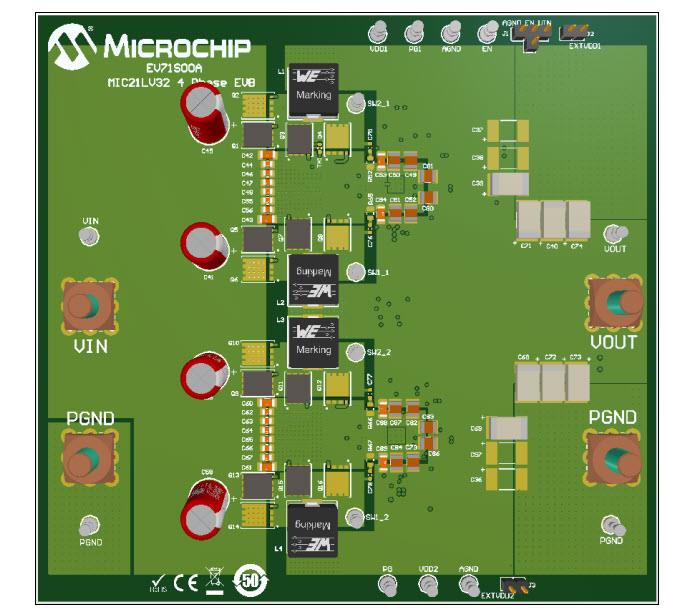

Front Overview

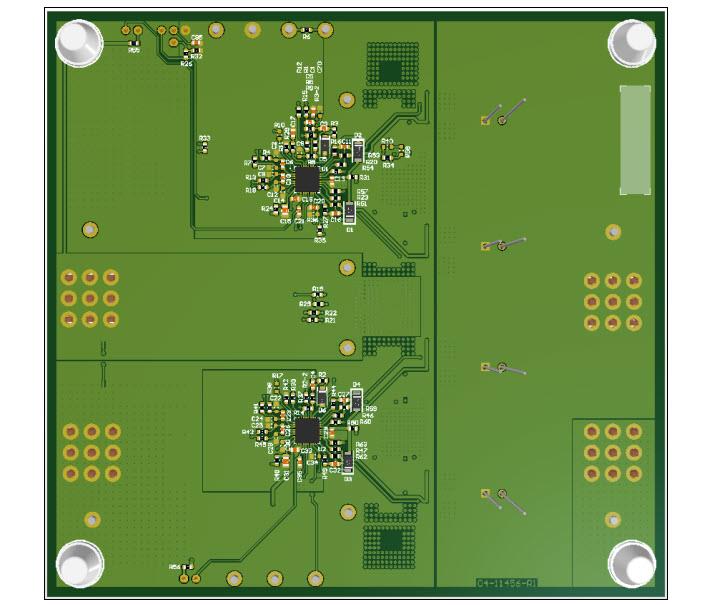

Back Overview

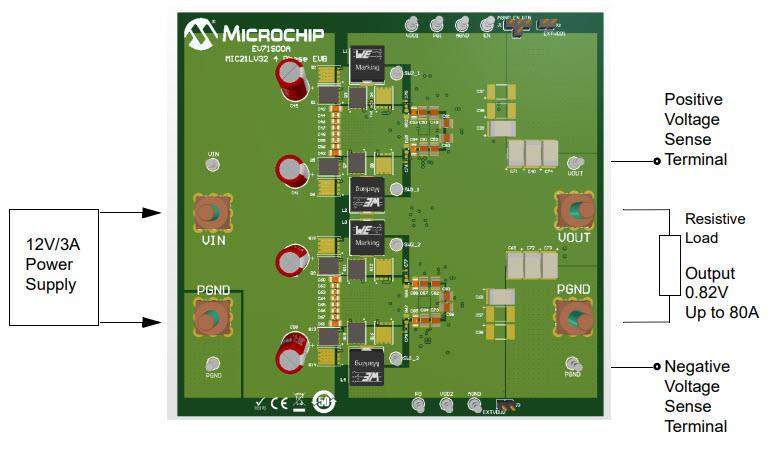

Connection Diagram
