Microchip Technology EV65D44A USB Software Framework Evaluation Kit

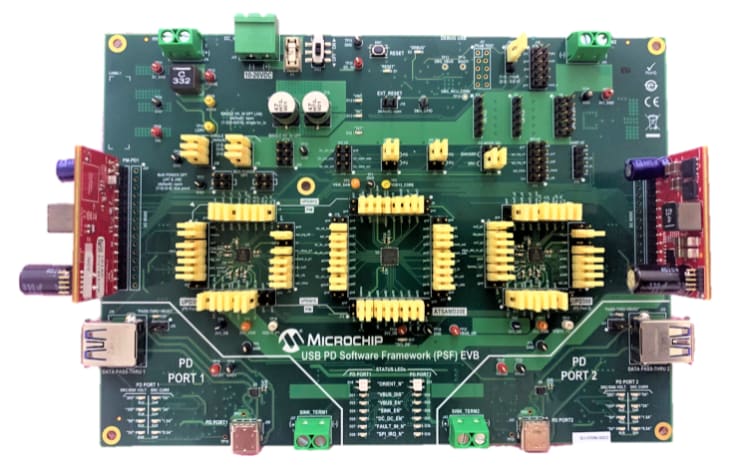

Microchip Technology EV65D44A USB Power Delivery Software Framework Evaluation Kit is a full-featured hardware development platform for evaluating USB Power Delivery Framework (PSF). The EV65D44A development platform utilizes Microchip’s SAMD20 series micro-controller and UPD350 Type-C™ USB Power Delivery (PD) controller. Additionally, the Kit also supports Microchip’s PD3.0 compliant UPD301B/C standalone Type-C™ PD controller.

The Microchip EV65D44A USB Power Delivery Software Framework Evaluation Kit is powered by the highly configurable PSF software stack that eases the implementation of up to two Type-C™ USB PD ports and reduces the overall time to market. Each port on the device is capable of handling up to 100W.

The USB Power Delivery Software Framework Evaluation Kit is compliant with the USB 3.1 Gen1/Gen2, USB 2.0 HS, Full-Speed (FS), and Low-Speed (LS) USB signaling.

Features

ATSAMD20E16A Micro-controller for running PD software stack
Two UPD350 Type-C™ PD Transceivers for managing the PD ports
Two full-featured Type-C USB PD ports with data capable of handling up to 100W
Supports PD source, PD sink, and dual role operation
Supports dead battery mode for sink and dual role applications
Supports USB 3.1 (Gen1/Gen2) and USB 2.0 (HS, FS, and LS) operation
Supports the self-powered and bus-powered operation

Plug-In Module (PIM) support for UPD301B/C Type-C standalone Type-C PD
Supports GPIO mode and I²C mode control of DC-DC modules
Highly configurable jumper options for the SAMD20 and UPD350 to enable flexible I/O assignment
Flexibility to power the board from single or multiple power supplies
PKoB Nano onboard programmer/debugger for programming the SAMD20
LED voltage and current meters for each PD port

Kit Contents

One USB power delivery software framework evaluation board (02-00022)
Two PM-PD modules, vertical mount (02-00660)

Microchip Technology EV65D44A USB Software Framework Evaluation Kit

Features

Kit Contents
