Microchip Technology EV36W50A WFI32-IoT Board

Microchip Technology EV36W50A WFI32-IoT Board is a compact, stand-alone, easy-to-use board designed to develop IoT applications. Utilizing the WFI32E01PC highly integrated Wi-Fi® MCU module, the EV36W50A Board supports smart Wi-Fi functionalities and premium MCU features. Additionally, the WFI32E01PC module has a PCB antenna and Trust&GO hardware secure element, which is pre-provisioned to popular cloud platforms.

Features

Provides an easy way to connect the embedded application to cloud IoT platforms, such as AWS and Azure
Includes a PICkit On-board 4 (PKOB4) debugger interface, and requires no external hardware to program and debug the WFI32E01PC module

Includes a mikroBUS™ Click™ header, which helps the users to expand the functionalities by connecting to various MikroElectronika mikroBUS™ Click™ adapter boards
Requires only a Micro USB cable to power up and program the board

Components

Certified WFI32E01PC module
Four user LEDs
Two user-configurable switch
One reset switch

Onboard temperature sensor
Onboard light sensor
32-Mbit external SPI flash memory
mikroBUS™ socket to expand functionality using MikroElec

Kit Contents

WFI32E01PC module mounted on the WFI32-IoT board
Type-A male to Micro-B USB cable

Microchip Technology EV36W50A WFI32-IoT Board

Features

Components

Kit Contents

Videos

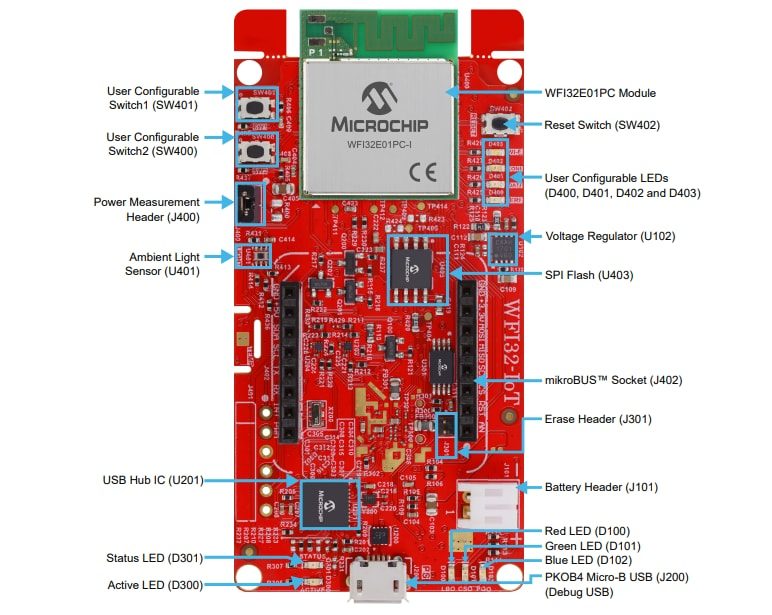

Front Overview

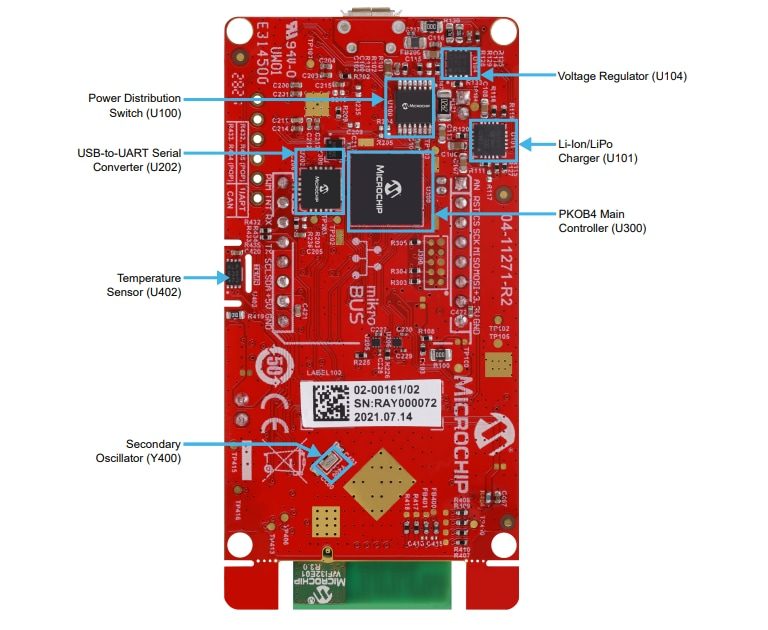

Back Overview

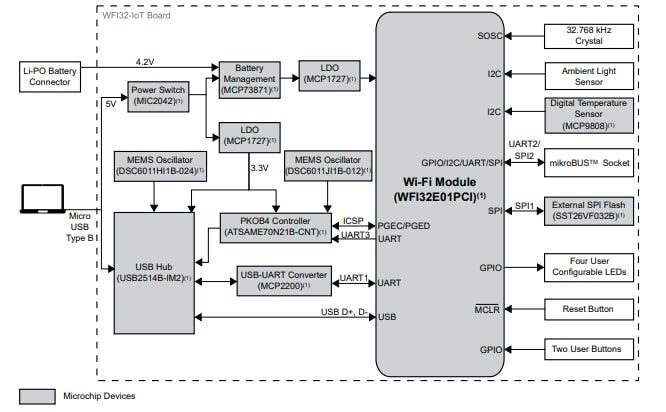

Block Diagram
