Microchip Technology DSA61 MEMS Oscillators

Microchip Technology DSA61 MEMS Oscillators offer industry-leading low power consumption, exceptional frequency stability, and low jitter over temperature. The Microchip Technology DSA61 oscillators are ideal for automotive applications that require small size, low power, and long-term reliability. These devices are AEC-Q100 qualified and come in ultra-small 1.6mm x 1.2mm, 2.0mm x 1.6mm, and 2.5mm x 2.0mm packages, which can easily replace standard 4-pin CMOS quartz crystal oscillators.

Features

Automotive AEC-Q100 qualified
3.5kHz to 100MHz wide frequency range
3mA/1μA (active/standby) ultra-low power consumption
Ultra-small footprints
- 1.6mm x 1.2mm
- 2.0mm x 1.6mm
- 2.5mm x 2.0mm
Frequency select input supports two pre-defined frequencies
±20ppm, ±25ppm, ±50ppm high stability
Supply range of 1.71V to 3.63V

Wide temperature range
- Automotive Grade 1: -40°C to +125°C
- Automotive Grade 2: -40°C to +105°C
- Automotive Grade 3: -40°C to +85°C
Excellent shock and vibration immunity
- Qualified to MIL-STD-883
High reliability
- 20x better MTF than quartz oscillators
<1 week short sample lead time
Lead-free and RoHS-compliant

Applications

Automotive infotainment
Automotive ADAS, surround view cameras
In-vehicle networking, CAN bus, Ethernet

Microchip Technology DSA61 MEMS Oscillators

Features

Applications

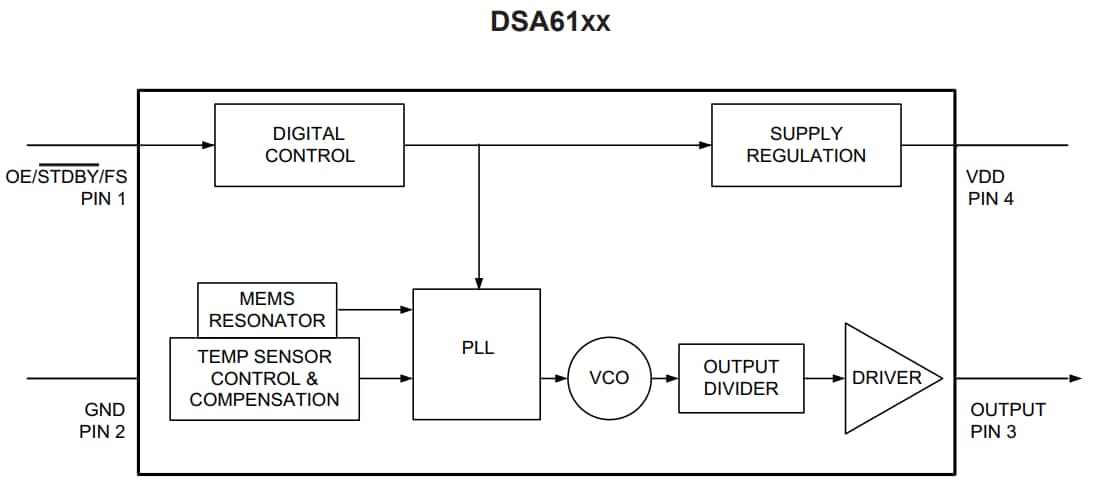

Block Diagram
