Microchip Technology DSA60 MEMS Oscillators

Microchip Technology DSA60 MEMS Oscillators offer industry-leading low power, excellent frequency stability, and jitter performance across temperatures. The Microchip Technology DSA60 oscillators are ideal for small, low-power, and reliable clock references in automotive applications. These oscillators are Automotive Grade AEC-Q100 qualified and come in various compact package sizes, making them easy drop-in replacements for standard 4-pin CMOS quartz crystal oscillators.

Features

Automotive AEC-Q100 qualified
2kHz to 80MHz wide frequency range
1.3mA/1µA (active/standby) ultra-low power consumption
Ultra-small footprints
- 1.6mm x 1.2mm VFLGA
- 2.0mm x 1.6mm VFLGA
- 2.5mm x 2.0mm VLGA
- 3.2mm x 2.5mm VDFN
- 5.0mm x 3.2mm VDFN
- 7.0mm x 5.0mm VDFN
Frequency select input supports two pre-defined frequencies
±20ppm, ±25ppm, ±50ppm high stability

Supply range of 1.71V to 3.63V
Wide temperature range
- Automotive Grade 1: -40°C to +125°C
- Automotive Grade 2: -40°C to +105°C
- Automotive Grade 3: -40°C to +85°C
Excellent shock and vibration immunity
- Qualified to MIL-STD-883
High reliability
- 20x better MTF than quartz oscillators
<1 week short sample lead time
Lead-free and RoHS-compliant

Applications

Automotive infotainment
Automotive ADAS, surround view cameras
In-vehicle networking, CAN bus, Ethernet

Microchip Technology DSA60 MEMS Oscillators

Features

Applications

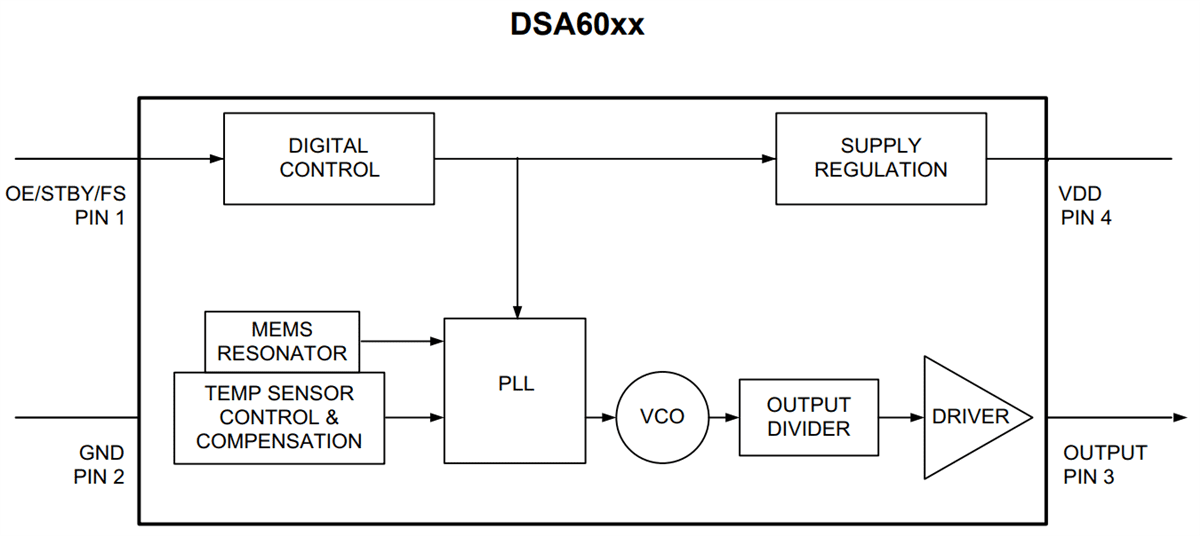

Block Diagram
