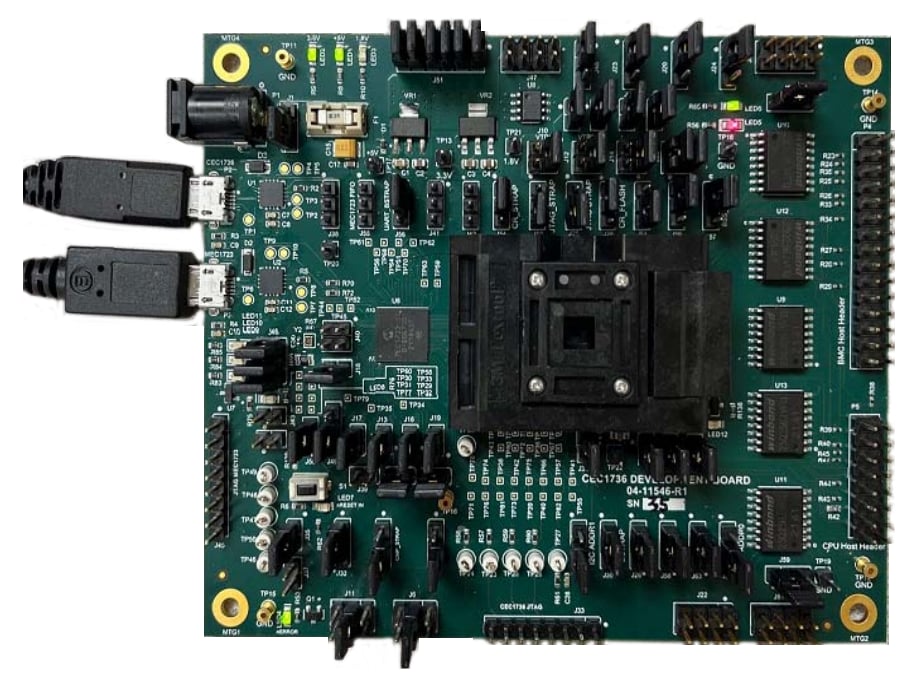

Microchip Technology CEC1736 Development Board is a demonstration, development, and testing platform for Real-Time Platform Root of Trust applications. These applications are in data center, telecommunications, networking, industrial, and embedded computing markets. The Microchip CEC1736 development board offers a variety of hardware options (including a power supply, user interface, serial communications, and expansion headers) that enable rapid prototyping and development of Real-Time Platform Root of Trust applications.
The CEC1736 board has a socket that accommodates a CEC1736 Trust Shield Controller. The CEC1736 can be replaced, allowing users to experiment and develop with its internal One Time Programmable (OTP) block.
This development board is developed for an excellent out of box experience for users with the following features:
• CEC1736 OTP – pre-programmed with pre-defined OTP features that support demonstration example
• CEC1736 internal SPI Flash – pre-programmed with the Soteria-G3 firmware
• MEC1723 (emulated as Application Process) – MEC1723 Out-of-box example firmware is included and upgradeable for demonstration
• CEC1736 socket – Users have the ability to use a production CEC1736 to develop their own OTP features for their specific designs
